21,000 Lumen Outdoor Light

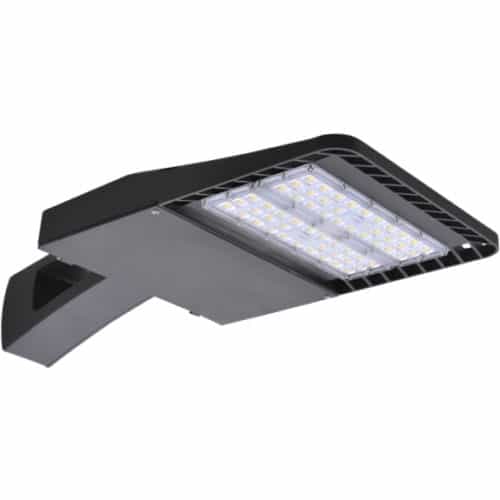

LSI Industries SSA LED 21L ACR FT UNV DIM 50 BRZ PM is an acrylic housed LED pole light with a bronze finish. The light produces 21,000 lumens and handles 120-277-volt AC power. Rated for IP65 Standards for outdoor use in harsher environments. The driver is made for high performance with integral surge protection and is engineered with short circuit and over temperature protection.

Specifications:

• Part Number: SSA LED 21L ACR FT UNV DIM 50 BRZ PM
• Part Number Breakdown
• SSA: Small Commercial Area

LED:

• 21L: 21,000 Lumens (183 Watts)
• ACR: Acrylic
• FT: Type 4 Forward Throw
• UNV: Universal Voltage (120-277V)
• DIM: 0-10V Dimming (0-10%)
• 50: 5,000K CCT Color Temp
• BRZ: Bronze Finish
• PM: Square Pole Mount Arm

Construction:

• Rugged die-cast aluminum housing for maximum durability and reliability.
• IP65 rated luminaire protects integral components from harsh environments.
• Shipping weight: 17.24 lbs. in carton.

Optical System:

• Premium engineered IP65 rated acrylic optic assemblies deliver Type 3, 4 (FT) or 5 distributions.
• Zero uplight.
• Available in 5000K, 4000K, and 3000K color temperatures per ANSI C78.377.
• Minimum CRI of 80.

Electrical

• High-performance driver features short-circuit and over temperature protection with integral surge protection (6kV).
• 0-10V dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 Vac)
• Input 50/60 Hz or optional High Voltage (347-480 Vac).
• L70 Calculated Life: >50K Hours (See Lumen Maintenance on Page 3)
• Total harmonic distortion: <20%
• Operating temperature: -40°C to +40°C (-40°F to +104°F).
• Power factor: >.90
• Input power stays constant over life.
• Optional 10kV surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).
• High-efficacy LEDs mounted to metal-core circuit board to maximize heat dissipation.
