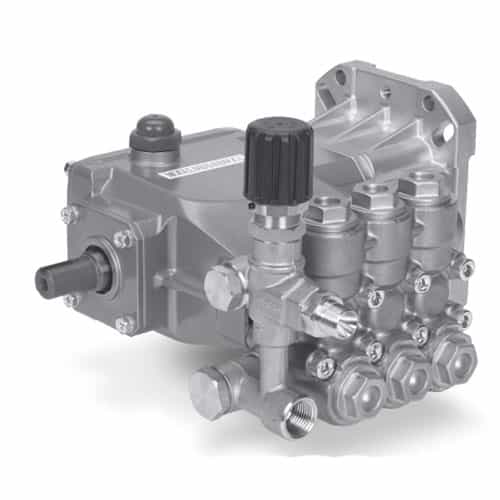

CAT Pumps 66DX40DSG1 Direct Drive Gas Powered Triplex Plunger Pump - 4.0 GPM, 4000 PSI, 3400 RPM

Brand:
Mfr. Model #:
66DX40DSG1
KR Part #:
PU66DX40DSG1
Weight:
23.95 lbs
Usually Ships in 2 Weeks
MSRP
$1,383.00
Now Only!
$708.10
A triplex plunger pump for mounting with gas engines. Includes a modular regulating unloader with a built-in bypass protecting the pump from excessive pressure. Uses a handles flow rates of 4.0 GPM and pressures up to 4000 PSI.



Technical Specifications

Max PSI: 4000
Max GPM: 4.0
RPM: 3400
Min PSI: 100
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Shaft Diameter: 0.78 inch
Crankcase Capacity: 18 ounce
Max Temperature: 140 degrees F

Product Description

Gas Flanged Pump

The CAT Pumps 66DX40DSG1 is a triplex plunger pump designed to provide smooth liquid flow. Plungers are made with special concentric, high-density, polished, solid ceramic and engineered to extend seal life. A compact flange mount enables direct mounting with most gas engines easily. The pump's shaft measures 20 mm and is made with a M6 keyway.

Specifications:

  • Flow 4.0 gpm
  • Pressure Range 100 to 4000 psi
  • Pump RPM 3400 rpm
  • Inlet Pressure Range Flooded to 75 psi
  • Max. Liquid Temperature 140° F
  • Bore 0.551"
  • Stroke 0.449"
  • Crankcase Capacity 18 oz.
  • Inlet Ports (2) 1/2" NPT(F)
  • Discharge Ports (2) 3/8" NPT(F)
  • Shaft Diameter (Hollow) 1"
  • Shaft Diameter (Solid End) 0.787"
  • Engine Mounting Face 6.5"
  • Weight 23.95 lbs.

Dimensions:

  • 11.13 x 10.51 x 8.15"

Features:

  • Triplex plunger design provides a smooth liquid flow
  • Made with brass
  • Special concentric, high-density, polished, solid ceramic plungers provide a true wear surface and
  • extended seal life
  • Compact flange mount permits easy, direct mounting to most gas engines *
  • Solid 20 mm shaft with M6 keyway
  • Modular regulating unloader with built-in by-pass is standard for safety and pressure setting

*Gas Mounting Flange: SAE J609, Flange B, Extension 4 (1"¯), Shaft Length= 3 1/4", PilotØ= 5 3/4", BC.Ø= 6 1/2", Thread 3/8"-16 UNC Tap
