M12 1 Sensor

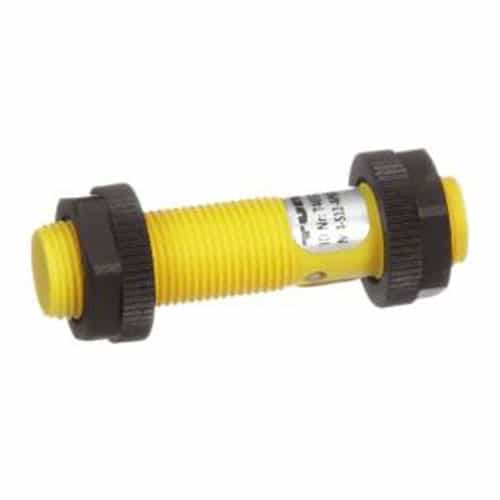

Turck's NI4-S12-AN6X-H1141 46253 inductive sensor is used as a contactless and wear-free way to detect metal objects. Sensing distance reaches a maximum of 4-millimeters. Constructed with PA12_GF30 plastic housing. Compatible with 10-30 VDC voltage power connections.

Specifications:

• Rated Switching Distance: 4 mm
• Mounting Conditions: Non-Flush
• Secured Operating Distance: _ (0.81 _ Sn) mm
• Correction Factors: St37 = 1; Al = 0.3; Stainless Steel = 0.7; ms = 0.4
• Repeat Accuracy: _ 2 % Of Full Scale
• Temperature Drift: _ ± 10 %
• Hysteresis: 3É15 %
• Ambient Temperature: -25É+70 °C
• Operating Voltage: 10É30 VDC
• Residual Ripple: _ 10 % Uss
• DC Rated Operational Current: _ 200 Ma
• No-Load Current: _ 15 Ma
• Residual Current:  _ 0.1 Ma
• Isolation Test Voltage: _ 0.5 Kv
• Short-Circuit Protection: Yes / Cyclic
• Voltage Drop at Ie:  _ 1.8 V
• Wire Breakage/Reverse Polarity Protection: Yes / Complete
• Output Function: 3-Wire, NO Contact, PNP
• Switching Frequency: 2 khz
• Design: Threaded Barrel, M12 _ 1
• Dimensions: 51 mm
• Housing Material: Plastic, PA12-Gf30
• Active Area Material: Plastic, PA12-GF30
• Max. Tightening Torque of Housing Nut: 1 nm

Technical Data

• Electrical Connection: Connectors, M12 _ 1
• Vibration Resistance: 55 Hz (1 mm)
• Shock Resistance: 30 g (11 ms)
• Protection Class: IP67
• MTTF: 2283 years acc. to SN 29500 (Ed. 99) 40 °C
• Switching State: LED, Yellow
