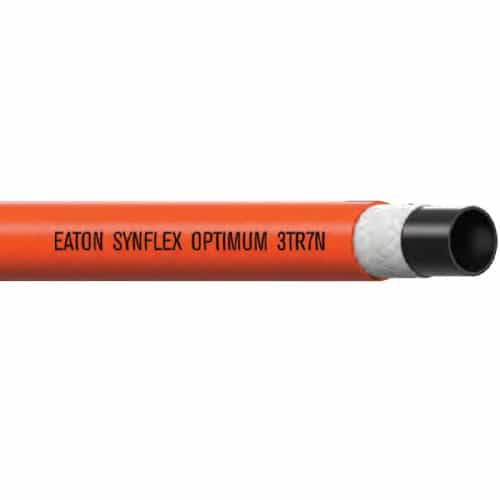

Eaton Optimum Orange 3TR7N-04 Thermoplastic 1/4 in. Single Braid Hydraulic Hose - Non-Conductive

Mfr. Model #:
KR Part #:
0.04 lbs
Now Only!

Orange thermoplastic braid hydraulic hose with nylon inner tube, polyurethane cover, and single textile braid reinforcement. Designed for hydraulic systems in car washing, agriculture, manufacturing, and other industrial applications. SAE 100R7, 2800 PSI working pressure, .25" ID, .49" OD.

NOTE: Pricing is by the foot.


Technical Specifications

Min Temperature: -40 degrees F
Max Temperature: 212 degrees F
Max PSI: 2800

Product Description

1/4" Orange Non-Conductive Hydraulic Hose

This Eaton Optimum Hose is an SAE 100R7 hose with a nylon inner tube, single textile braid reinforcement, and a nonstick polyurethane cover. This non-conductive hose is used in hydraulic applications at car washes, farms, manufacturing facilities, and other industrial settings. This section of SAE 100R7 hose has a 1/4" inner diameter and orange color covering.


  • SAE 100R7
  • Inner Tube: Nylon
  • Reinforcement: 1 textile braid
  • Cover: Orange polyurethane
  • Inner Diameter: .25"
  • Outer Diameter: .49"
  • Working Pressure: 2800 PSI (SAE), 3000 PSI (ANSI)
  • Minimum Burst Pressure: 11000 PSI
  • Minimum Bend Radius: 1.25"
  • Operating temperature range for oil-based liquids: -40° to +212° Fahrenheit
  • Operating temperature range for water-based fluids: -40° to +150° Fahrenheit

Typical Platforms:

  • Car wash
  • Agriculture
  • Horticulture
  • Chemical transfer
  • Foam systems
  • Food processing
  • Forestry delimber
  • General construction
  • General hydraulic systems
  • Lubrication systems
  • Marine steering
  • Utility vehicles and pickers
  • Rescue apparatus & tools
  • Water jetter drain/sewer
