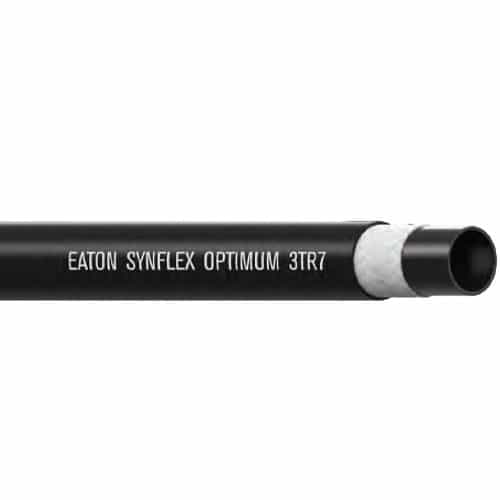

Eaton Optimum Black 3TR7-12 Thermoplastic 3/4 in. Single Braid Hydraulic Hose
Brand:
Mfr. Model #:
3TR7-12
KR Part #:
HOS3TR7-12
Weight:
0.09 lbs
Black thermoplastic braid hydraulic hose with nylon inner tube, polyurethane cover, and single textile braid reinforcement. Designed for hydraulic systems in car washing, agriculture, manufacturing, and other industrial applications. SAE 100R7, 1250 PSI working pressure, .75" ID, 1.04" OD.
NOTE: Pricing is by the foot.
Technical Specifications
Min Temperature: -40 degrees F
Max Temperature: 212 degrees F
Max PSI: 1250
Product Description
3/4" Black 100R7 Hydraulic Hose Section
This Eaton Optimum Hose is an SAE 100R7 hose with a nylon inner tube, single textile braid reinforcement, and a nonstick polyurethane cover. This reinforced hose is used in hydraulic applications at car washes, farms, manufacturing facilities, and other industrial settings. This section of SAE 100R7 hose has a 3/4" inner diameter and a black color poly cover.
Specifications:
- SAE 100R7
- Inner Tube: Nylon
- Reinforcement: 1 textile braid
- Cover: Black polyurethane
- Inner Diameter: .75"
- Outer Diameter: 1.04"
- Working Pressure: 1250 PSI (SAE)
- Minimum Burst Pressure: 5000 PSI
- Minimum Bend Radius: 4.25"
- Operating temperature range for oil-based liquids: -40° to +212° Fahrenheit
- Operating temperature range for water-based fluids: -40° to +150° Fahrenheit
- Typical Platforms:
- Car wash
- Agriculture
- Horticulture
- Chemical transfer
- Foam systems
- Food processing
- Forestry delimber
- General construction
- General hydraulic systems
- Lubrication systems
- Marine steering
- Utility vehicles and pickers
- Rescue apparatus & tools
- Water jetter drain/sewer
