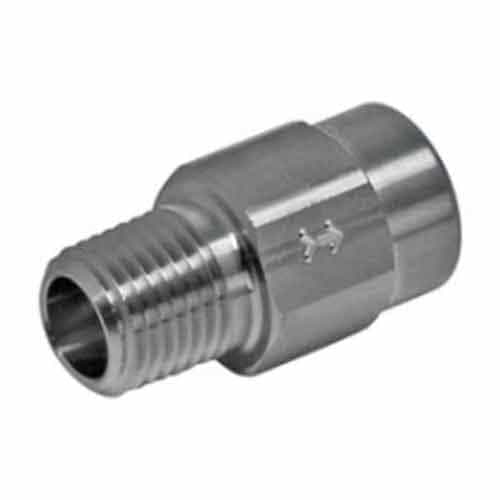

SMC 7260590 Stainless Steel 1/4 M x 1/4 F Check Valve - 500 PSI

Brand:
Mfr. Model #:
7260590
KR Part #:
CV0097
Weight:
0.10 lbs
In Stock
MSRP
$32.93
Now Only!
$23.95
316 stainless steel check valve with stainless steel spring and Viton O-ring. Water flows from 1/4" male end to 1/4" female end. 500 PSI maximum pressure, 20 PSI cracking pressure.



Technical Specifications

Max PSI: 500
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch

Product Description

500 PSI Steel Check Valve

The SMC 7260590 Check Valve is made with stainless steel and flows from the male end to the female end. Usable in applications up to 500 PSI. Perfect design to keep your fluid flowing in the proper direction to protect equipment and maintain consistent flow.
Specifications:

  • 316 stainless body and piston
  • Viton O-ring
  • 302 stainless spring
  • 500 PSI maximum pressure
  • 20 PSI cracking pressure
  • Temperature: 180° Fahrenheit
  • 1/4" MNPT inlet
  • 1/4" FNPT discharge
  • Flow travels from male to female end as indicated by arrow
  • Weight: .25 lbs.
