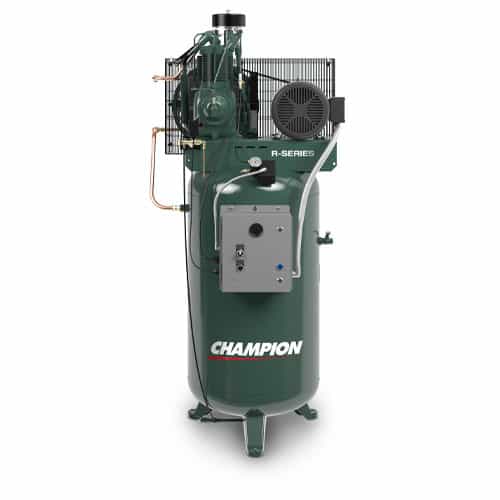

Champion VR58-3 R-Series 5HP, 80 Gallon Vertical Air Compressor, 3 Phase
Brand:
Mfr. Model #:
VR58-3 R-SERIES
KR Part #:
ACVR583-R
Weight:
590.00 lbs
Usually Drop Ships in 4 Weeks
Champion's R-Series vertical air compressor offers long-lasting performance. A time-tested, proven design with great standard features and a variety of options and accessories to be the solution for your application. Max pressure 175 PSI.
Freight Only
DROP SHIP
Technical Specifications
CFM: 127.6
Product Description
80 Gal. Tank, 17.3 CFM Delivery Compressor
Loaded with rugged features, splash-lubricated R-Series reciprocating compressors deliver dependable performance and tremendous value. Special-alloy steel reed valves provide a self-cleaning design that maintains peak performance throughout the life of the compressor. Cast iron cylinders and heads offer rugged, industrial rated dependability. 127.6 cubic feet capacity at 175 PSIG.Standard Equipment:
- Automatic start/stop operation
- Magnetic starters
- OSHA approved belt guard
- NEMA rated electric motors
- ASME coded receivers
- Bucket high drain valve
- 175 PSIG
- Preset pressure switch
- Splash lubricated
- Two-stage design
- 100% cast iron compressor pump
- Alloy steel reed valves
- Oil level sight glass
- Deep finned intercooler
- Industrial grade intake filter and silencer
- Factory filled with ChampLub AC lubricant
