Giant 25160 Regulator, 10.6 GPM, 3990 PSI
Brand:
Mfr. Model #:
25160
KR Part #:
PU25160
Weight:
1.25 lbs
This is a pressure-actuated regulator that is designed for any pump that fits within the flow and pressure range of the regulator. Has a flow rate of 10.6 GPM and a pressure range up to 3990 PSI.
Technical Specifications
Max GPM: 10.6
Min PSI: 3990
Max Temperature: 194 degrees F
Inlet Port: 3/8 inch
Outlet Port: 1/4 inch
Product Description

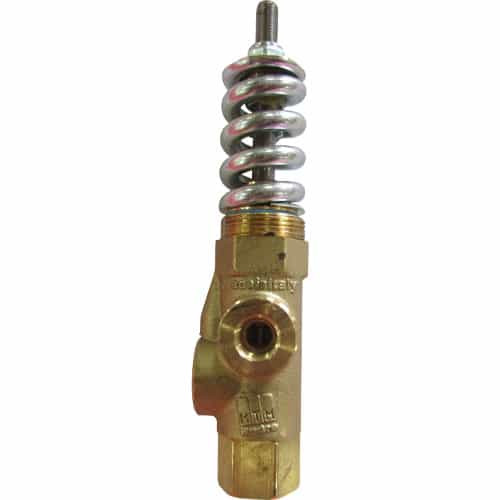

Giant Regulator
This is a pressure-actuated regulator that is designed for any pump that fits within the flow and pressure range of the regulator. The regulator determines the direction of the flow in the system and maintains system pressure via an adjustable knob that controls the amount of tension on a pressure spring. When the flow stops, it is diverted through the outlet port and all flow is diverted to the bypass port at virtually no pressure. This is capable of handling one or more shut-off guns, and should be run with no bypass.
Specifications:
- Flow: 10.6 GPM
- Max Pressure: 3990 PSI
- Max Temperature: 194° F
- Inlet Port: 3/8" FBSPP
- Outlet Port: 1/4" FBSPP
- Material: Brass body, stainless steel wet end metal parts
