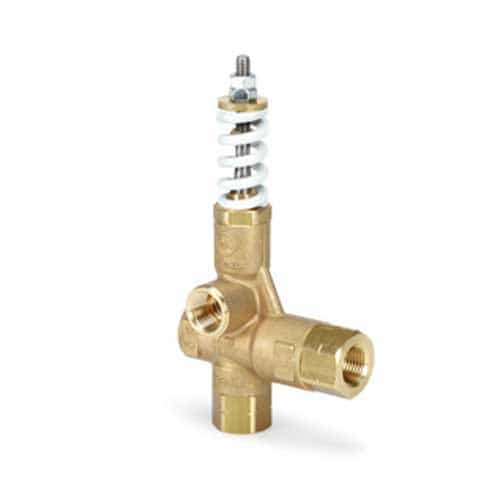

CAT Pumps 7537.1110 Multi-Gun Pressure Sensitive Regulating Unloader, Hi-Temp FPM Rings, 21 GPM, 2600 PSI
Brand:
Mfr. Model #:
7537.111
KR Part #:
PU7537.1110
Weight:
2.54 lbs
Usually Ships in 2 Weeks
Manuals
Brass construction pressure-sensitive regulating unloader designed for industrial use. Features multiple ports for convenient mounting. Color-coded spring makes it easy to identify and change from one model to the next as needed. FPM O-rings for higher temperature applications.
Technical Specifications
Min PSI: 230
Max PSI: 2600
Max Temperature: 240 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max GPM: 21
Product Description
Pressure Sensitive Regulating Unloader
The CAT Pumps 7537.1110 provides relief for single or multiple pump, weep, or multi-nozzle systems. Senses pressure built up from downstream flow changes and by-passes flow to protect pump from overpressure. Maintains full system pressure while running in by-pass without full load on pump. Provides for minimum pressure fluctuations across multiple guns in use at same time.
Features:
- Brass construction
- FPM O-rings for higher temperature applications
- Color-coded (white) spring for easy identification and simple change from one model to another
Specifications:
- Minimum Flow: 1.0 GPM
- Maximum Flow: 21.0 GPM
- Minimum Pressure: 230 PSI
- Maximum Pressure: 2600 PSI
- Maximum Temperature: 240°F
- Inlet Port: 1/2" NPT(F)
- Outlet Port: 1/2" NPT(F)
