Udor CKC3820SL High-Pressure Left Shaft Plunger Pump 10GPM, 3000PSI

Mfr. Model #:
KR Part #:
39.00 lbs
Low Stock Warning
Now Only!
Heavy duty pump featuring brass manifold, stainless steel piston guides. Deeper back cover provides for increased oil capacity. 10 GPM flow rate, at up to 3000 PSI.

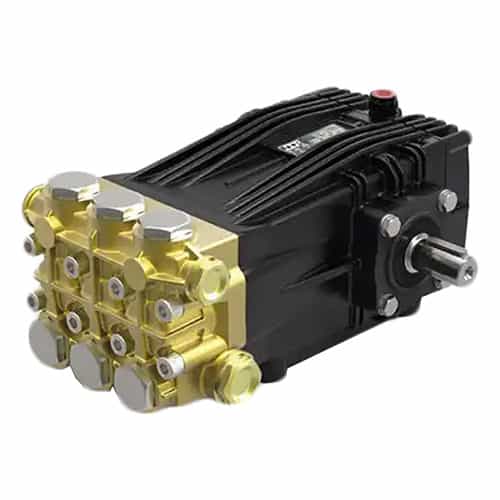

***Note: Pump shown features right side shaft. This product features a left side shaft.***

Technical Specifications

Max GPM: 10
Max PSI: 3000
Horsepower: 19.5
RPM: 1450
Inlet Port: 3/4 inch
Outlet Port: 1/2 inch
Max Temperature: 160 degrees F

Product Description

Udor CK-Series Solid Shaft Pump

The Udor CKC3820SL pump features heavy-duty brass construction, a heat-treated crank shaft, and an extra deep back cover for increased oil capacity to provide worry-free operation. 24mm keyed solid left-hand shaft makes it easy to integrate into your system. With a flow of up to 10 GPM at up to 3000 PSI, it provides reliable and consistent performance perfect for power washing, car wash, agricultural, and general purpose applications.


  • Left-side shaft
  • Reinforcing ring on inlet and discharge ports
  • Heat treated crank shaft
  • Industrial quality tapered roller bearings
  • Deep back cover for increased oil capacity
  • 35 oz. capacity vented oil bath crank case


  • Max GPM: 10 GPM
  • Max Pressure: 3000 PSI
  • Power Requirement: 19.5 HP Electric
  • Pump Speed: 1450 RPM
  • Inlet Port: 3/4" BSP-F
  • Outlet Port: 1/2" BSP-F
  • Maximum Temperature: 160°F
