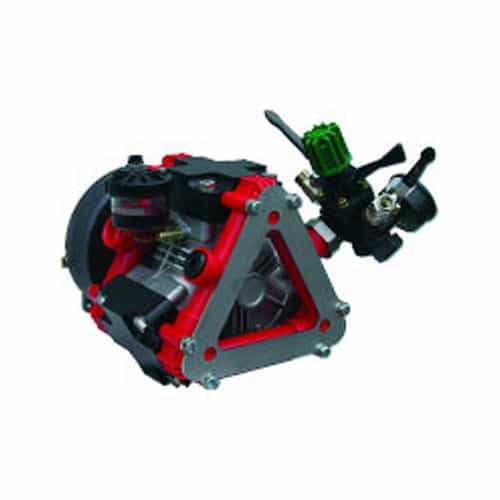

Udor 85PGR5 Zeta Triple Diaphragm Poly Pump with Gear Box - 22 GPM

Mfr. Model #:
KR Part #:
48.00 lbs
Out of Stock - Pre-Order Now
Now Only!

The Udor 85PGR5 is a low-pressure 3-cylinder diaphragm pump. Plasticized aluminum heads and glass-filled nylon manifolds offer durability. Features polypropylene and stainless steel liquid handling parts. The ZETA-85P pumps up to 22 gallons per minute. Gear box fitted for use with 4-6.5HP gasoline engines with 3/4" shafts.

Pressure Washing

Pressure Washing


Technical Specifications

Max GPM: 22
Max PSI: 300
Max Temperature: 140 degrees F
RPM: 540
Inlet Port: 1 1/4 inch

Product Description

22 GPM Three-Diaphragm Pump

A low-pressure, low-RPM 3-cylinder diaphragm pump, the Udor 85PGR5 Zeta is the go-to choice for soft wash needs, low-pressure cleaning services, and a number of other chemical applications. Solid crankcase construction, polypropylene and stainless steel liquid handling parts, heavy-duty connecting rods, and simplicity of design make it both durable and easy to maintain, while self-lubricating piston sleeves keep pumping effortlessly. The 85PGR5 includes a 3/4" gear box for use with 4-6.5 HP gasoline engines. DESMOPAN diaphragm. 3/4" bypass.

Udor 85PGR5 Features:

  • Max RPM: 540
  • Maximum Flow: 22 GPM
  • Maximum Pressure: 300 PSI
  • Maximum Fluid Temperature: 140°F
  • Inlet port: 1 1/4" hose barb
  • Outlet port: 1/2" hose barb
  • Weight: 36 lbs
