Hydro Systems 113205 SuperDos 20 2.5-Percent Injector

Brand:
Mfr. Model #:
HYD113205
KR Part #:
IN113205
Weight:
8.36 lbs
MSRP
$698.54
Now Only!
$425.92

Non-electric, fluid-drive proportional injector. Separate internal mixing chamber provides for uniform mixing. Interchangeable lower ends provide the ability to adjust ratios while in operation.

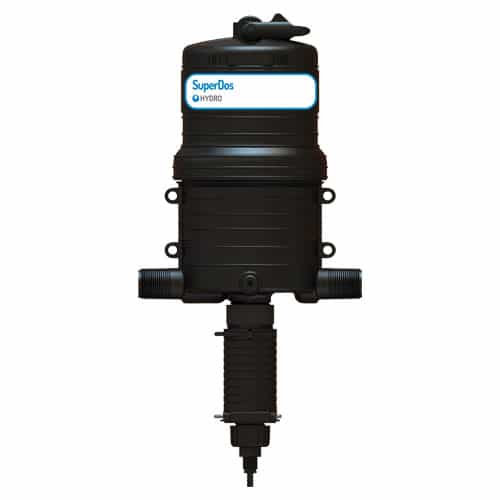

NOTE: Image illustrates the product line, but may not show the exact model being sold on this page. Please carefully check all specifications and details before purchasing.




Technical Specifications

Max GPM: 20
Min PSI: 5
Max PSI: 100
Min Temperature: 34 degrees F
Max Temperature: 100 degrees F
Min GPM: .05

Product Description

SuperDos Fluid-Driven Proportional Injector

Get the right mix without the need for a nearby electrical hookup! The SuperDos 20 2.5% injects liquid concentrates into a water supply line using fluid flow as the power source. Proprietary composite body offers chemical compatibility, even with aggressive chemicals. Interchangeable lower ends provide the ability to adjust ratios while in operation. Great for applications including car wash applications, cleaning, descaling, disinfecting and decontamination, hydroponics, misting systems, agricultural applications, soaps and foams, and much more!

Specifications:

  • Flow Rate: 0.05 - 20 GPM
  • Operating Pressure: 5 - 100 PSI
  • Temperature Range: 34°F to 100°F
  • Injection Rate: 1:500 - 1:40
  • Inlet/Outlet Connections: 1" NPT/BSP
