Nickel-Plated Brass Motion Sensor

The Telemecanique XS618B4NAM12 Proximity Sensor comes from the OsiSense XS line of sensors. OsiSense proximity sensors are useful for a variety of applications including car washes, robotics, assembly equipment, machining devices, packaging machines, food/beverage, and more!

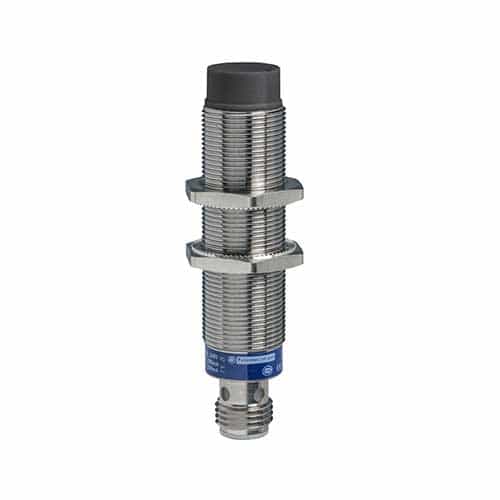

The XS618B4NAM12 model is a cylindrical design 18mm diameter inductive sensor with a fixed body type. It is made of nickel-plated brass and has a 3-wire technique, an M12 male electrical connector with 4 pins, and a frontal detection face. It has a nominal sensing distance of 12mm and a 12 to 48 volt DC reverse polarity protection.

Specifications:

• Range of product: OsiSense XS
• Sensor type: Inductive proximity sensor
• Device applcation: Mobile equipment
• Sensor name: XS6
• Sensor design: Cylindrical M18
• Size: 72 mm
  Body type: Fixed
• Detector flush mounting acceptance: Non flush mountable
• Enclosure material: Metal
• Type of output signal: Discrete
• Wiring technique: 3-wire
• Nominal sensing distance: 12 mm
• Discrete output function: 1 NO
• Output circuit type: DC
• Discrete output type: NPN
• Electrical connection: Male connector M12, 4 pins
• US rated supply voltage: 12-48 volt DC with reverse polarity protection
• Switching capacity in mA: <= 200 mA with overload and short-circuit protection
• IP degree of protection: IP67 conforming to IEC 60529, IP69K DIN 40050

Complementary Specifications:

• ISO thread: M18 x 1
• Detection face: Frontal
• Front material: PPS
• Operating zone: 0 to 9.6 mm
• Differential travel: 1-15% of Sr
• Output circuit type: DC
• Status LED: Output state: 1 LED (yellow)
• Supply voltage limits: 10-58 V DC
• Switching frequency: <= 1000 Hz DC
• Maximum voltage drop: <2 V (closed)
• Current consumption: <= 10 mA no-load
• Maximum delay first up: 10 ms
• Maximum delay response: 0.3 ms
• Maximum delay recovery: .7 ms
• Marking: CE
• Threaded length: 44 mm
• Length: 72 mm
• Net weight: 0.09 lbs.

UPC:

• 00785901014003
