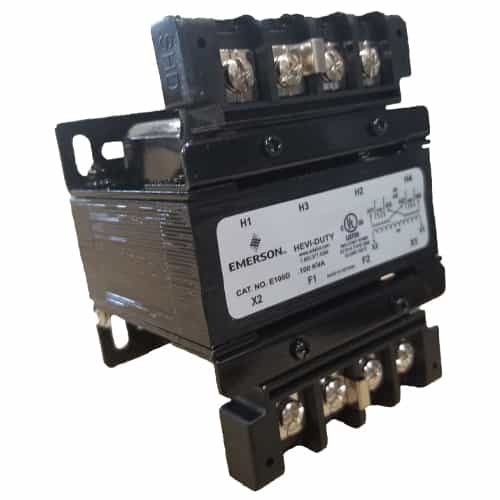

Sola HD E100D Inustrial Transformer - 50-1000VA, 50/60Hz

Mfr. Model #:
KR Part #:
4.60 lbs
In Stock
Now Only!
Encapsulated, copper wound industrial transformer. Heavy steel mounting plate. 50-1000VA, 50/60Hz.

Product Description

Encapsulated Copper Wound Transformer

The Sola HD E100D is part of the SBE Series of encapsulated, copper wound transformers. These industrial transformers feature a robust design with epoxy encapsulated windings that seal against moisture, dirt, and other potentially damaging contaminants. It also has extra deep, molded terminal barriers that help avoid arcing or frayed wires that cause electrical failure. Suitable for a wide variety of global industrial applications.

Dimensions: 2.96" Height x 3.39" Width x 4.61" Depth

Specifications and Features:

  • 50-1000 VA
  • 50/60 Hz
  • Primary Voltage: 240/480 VAC
  • Secondary Voltage: 24 VAC
  • Interleaved copper windings - maximum efficiency
  • 131° Fahrenheit Rise, 221° Fahrenheit insulation system to minimize heat
  • Epoxy encapsulated - guards cores and coils against moisture, dirt, and other contaminants
  • Heavy gauge steel mounting plate
  • Mounting dimensions are compatible with similar control transformers
  • UL 506 and CSA C22.2 No. 66 Certified
  • RoHS compliant
  • Meets or exceeds NEMA Standard ST-1 and ANSI C89.1 for load inrush capability
  • Weight: 5 lbs.
  • Can be used as a replacement for previous Kleen-Rite part #TR0105
