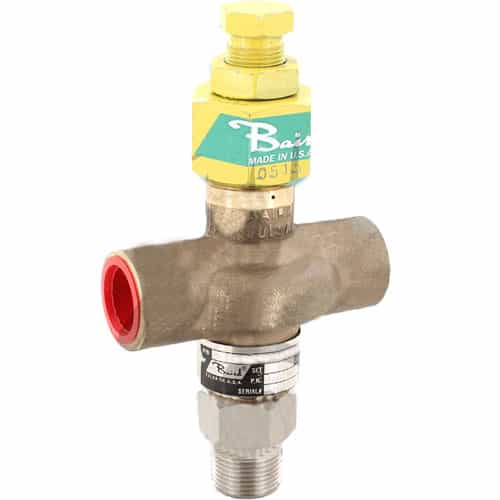

Baird 761-7601-1-LP Aluminum-Bronze Yellow Cap Liquid Relief Valve - 1 in. Ports, 300-1500 PSI

Brand:
Mfr. Model #:
761-7601-1-LP
KR Part #:
BV10-LP
Weight:
5.00 lbs
Usually Drop Ships in 2 Weeks
MSRP
$492.29
Now Only!
$492.27
Aluminum-bronze body valve with a yellow color cap. 1" MNPT inlet and dual 1" FNPT outlets. Pressure range from 300-1500 PSI.
Made In The USA

Made In The USA




Technical Specifications

Max PSI: 1500
Inlet Port: 1 inch
Outlet Port: 1 inch
Min PSI: 300

Product Description

1500 PSI Aluminum-Bronze Relief Valve

This Baird 761-7601-1-LP Liquid Relief Valve is designed to prevent over-pressuring in vessels, pumps, and lines. This tough and versatile valve is capable of handling a wide range of pressure levels. Boasts aluminum-bronze construction and 1" inlet and outlet ports. Ideal for pressures ranging from 300-1500 PSI.

  • Aluminum-bronze body
  • 300-1500 PSI pressure range
  • 1" male NPT inlet
  • 1" female NPT (x2) outlet
  • Ball and Seat: Sheralloy assembly (cobalt base alloy)
  • Spring: Disc
  • Cap Color Code: Yellow
  • Seat Orifice Diameter: 3/4"
  • Volume at 25% Over Set Pressure: 25-130 GPM
  • Spring Arrangement and Quantity: Reg 1 x 1 (18)
  • Flow from weep hole indicates that keeper seal is worn and needs to be replaced
  • Harm Code: 848190
  • Weight: 5 lbs.
  • Made in the U.S.A.
