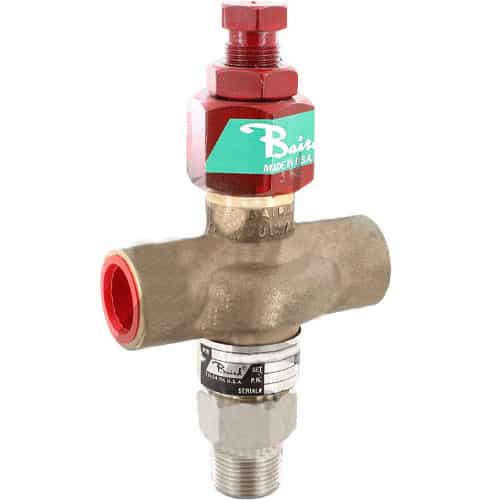

Baird 761-7601-1-HP Aluminum-Bronze Red Cap Liquid Relief Valve - 1 in. Ports, 1000-6000 PSI

Brand:
Mfr. Model #:
761-7601-1-HP
KR Part #:
BV10-HP
Weight:
5.00 lbs
MSRP
$492.29
Now Only!
$492.27
Aluminum-bronze body valve with a red color cap. 1" MNPT inlet and dual 1" FNPT outlets. Pressure range from 1000-6000 PSI.
Made In The USA

Made In The USA




Technical Specifications

Max PSI: 6000
Inlet Port: 1 inch
Outlet Port: 1 inch
Min PSI: 1000

Product Description

6000 PSI Aluminum-Bronze Relief Valve

This Baird 761-7601-1-HP Liquid Relief Valve is designed to prevent over-pressuring in vessels, pumps, and lines. This tough and versatile valve is capable of handling a wide range of pressure levels. Boasts aluminum-bronze construction and 1" inlet and outlet ports. Ideal for pressures ranging from 1000-6000 PSI.

Specifications:

  • Aluminum-bronze body
  • 1000-6000 PSI pressure range
  • 1" male NPT inlet
  • 1" female NPT (x2)
  • Ball and Seat: Sheralloy assembly (cobalt base alloy)
  • Spring: Disc
  • Cap Color Code: Red
  • Seat Orifice Diameter: 1/2"
  • Spring Arrangement and Quantity: Reg 2 x 2 (20)
  • Flow from weep hole indicates that keeper seal is worn and needs to be replaced
  • Harm Code: 848190
  • Weight: 5 lbs.
  • Made in the U.S.A.
