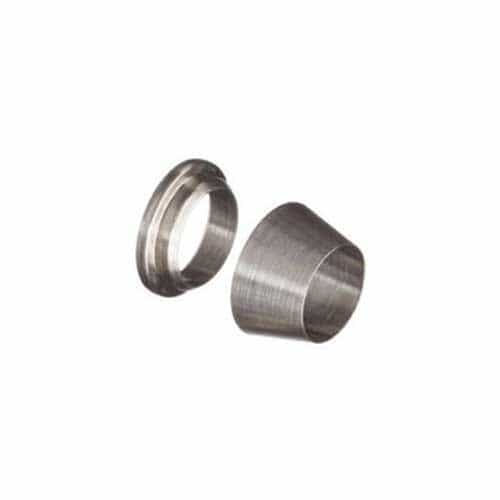

Parker 8 ALOK-316-SET Stainless Steel 1/2 Inch A-Lok Ferrule Set

Brand:
Mfr. Model #:
8 ALOK-316-SET
KR Part #:
8ALOK-316-SET
Weight:
0.05 lbs
Usually Ships in 2 Weeks
MSRP
$106.64
Now Only!
$71.10
Front and back A-Lok ferrule set for 1/2" tubing. Made with high-quality 316 stainless steel. 1200° Fahrenheit maximum temperature.



Technical Specifications

Max Temperature: 1200 degrees F
Min Temperature: -425 degrees F

Product Description

1/2" Front and Back Ferrule Set

This Parker 8 ALOK-316-SET Ferrule Set helps to provide a leak-proof seal for high-pressure and high-temperature uses in various applications. Use with 304, 316, or 316L stainless steel tubing. Features a 4:1 safety factor with respect to working pressure capabilities of the tubing used.

Specifications:

  • Tube Size: 1/2"
  • Maximum Temperature: 1200° Fahrenheit
  • Minimum Temperature: -425° Fahrenheit
  • End 1 Size: 15mm
  • Double ferrule design - includes both front and back ferrule
  • Positive leak-free seal after assembly
  • 316 stainless steel construction
  • Weight: .05 lbs.
  • Standards: ASME-SA-479, TYPE 316-SS, BS970, 316-S31, DIN 4401, ASTM A276 Type 316
