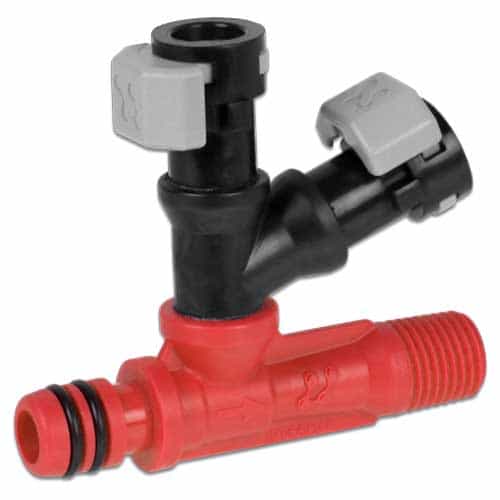

VersaDial 327057 Composite Quick Connect Injector 1 GPM, 2 Barb, Red
Brand:
Mfr. Model #:
327057
KR Part #:
IN327057
Weight:
0.50 lbs
Availability:
1
Manuals
Dual hose barb injector designed for diluting two chemicals with water. It has a 1 GPM flow rate at 200 PSI (13.9 bar). PC1 x 1/4" MNPT.
NOTE: This is a clearance item with limited inventory. All sales final - no returns.
Technical Specifications
Max PSI: 250
Min Temperature: 40 degrees F
Max Temperature: 140 degrees F
Type: Chemical Dispenser/Injector
Product Description
VersaDial Control System Injector
Composite injectors stand up to the most aggressive, yet common, car wash chemicals. The dual hose barb injector is designed to dilute two chemicals with water. The injector's nozzle and body is made of corrosion-resistant composite material. Each injector in the VersaDial line is color-coded based on the water flow needed for each application.
PC1 injectors are designed for use with SAM valves and VersaDial chemical control devices only.
This is a clearance item with limited inventory. All sales final - no returns.
Features:
- Hastelloy spring
- Teflon check ball
- Exclusive XFC o-ring
- Red color
- 1/4" MNPT
- All composite material
Specifications:
- Connection type: PC1 quick connect
- Max pressure inlet/outlet: up to 250 PSI (17 bar)
- Temperature range: 40-140 degrees F
- Number of hose barbs: 2
- Maximum wrench torque: hand tighten only (30 in-lbs.)
- Flow rate at 200 PSI: 1 GPM
