Watts 1500 Heavy Duty Bronze Float Valve 1 1/2 in. FNPT
Brand:
Mfr. Model #:
1500 (0780013)
KR Part #:
FVW1500
Weight:
3.40 lbs
GTIN:
098268090963
Manuals
1 1/2" heavy duty mechanical float valve used in commercial, industrial, and agricultural applications. Used for controlling high capacity water flow, especially in air conditioning, refrigeration, and irrigation systems. Maximum pressure of 165 PSI.
Technical Specifications
Max PSI: 165
Max Temperature: 180 degrees F
Max GPM: 250
Inlet Port: 1 1/2 inch
Outlet Port: 1 1/2 inch
Product Description

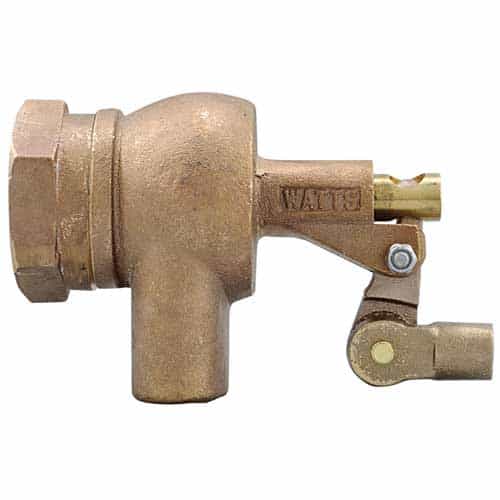

1500 Series Bronze Float Valve
This bronze valve has a machine flange on the inlet side with a 1 1/2" female NPT pipe threaded inlet connection and a male straight-pipe threaded for locknut outlet connection. It has serrated arms for easy adjustment of water level.
Features:
- Replaceable seals
- Bronze body
- Serrated arms
- Machined flange
Specifications:
- Bronze body material
- Flow: 250 GPM
- Inlet: 1 1/2"
- Inlet pressure: 50 PSI
- Maximum pressure: 165 PSI
- Maximum temperature: 180 degrees F
- Outlet: 1 1/2"
