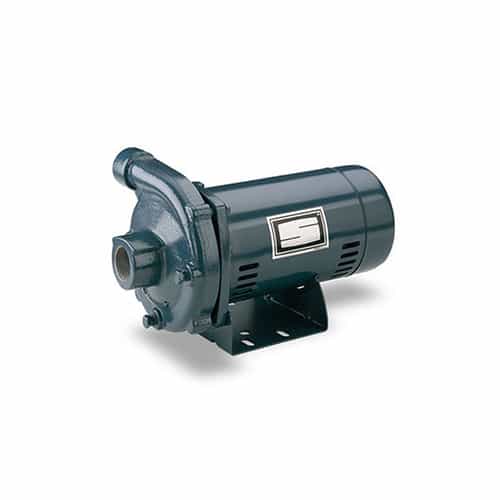

Sta-Rite JBHC3-61S Cast Iron 3-Phase Centrifugal Pump with High Head - 208-230V/460V, 1/2 HP, 40 GPM
Brand:
Mfr. Model #:
JBHC3-61S
KR Part #:
JBHC3-61S
Weight:
31.00 lbs
GTIN:
022315144279
Call For Availability
Three phase, .5 horsepower centrifugal pump housed in a cast iron body. High head style with a silicon bronze material impeller. Electrical requirements are 208-230V/460V.
Technical Specifications
Max PSI: 80
Inlet Port: 1 1/4 inch
Max GPM: 40
Max Temperature: 225 degrees F
Phase: Three
Voltage AC: 208-230/460
Horsepower: 0.5
Outlet Port: 1 inch
Product Description
Cast Iron Body Centrifugal Pump with Silicon Bronze Impeller
The Sta-Rite JBHC3-61S Centrifugal Pump is a cast iron pump with a high head and a silicon bronze impeller. This durable centrifugal pump has 3-phase operation with 208-230/460 Volt electrical requirement. Ideal for a variety of heavy-duty water transfer applications including agriculture, manufacturing, car washes, home use, and industrial environments.
Specifications:
- 1/2 horsepower
- 208-230 Volt/460 Volt
- 60 Hz
- Three phase
- 1" NPT discharge port
- 1 1/4" suction port
- 225° Fahrenheit maximum temperature
- 40 GPM maximum flow rate
- 80 PSI maximum total pressure
- Silicon bronze impeller
- Carbon/Ceramic/Buna-N seals
- 25' maximum suction lift
- Cast iron body
- 416 stainless steel motor shaft
Features:
- Drain port for easy winterizing
- Easy serviceability - Replaceable wear ring and a back pull-out design
- Silicon bronze impeller- ideal for high temperatures up to 225° Fahrenheit
Applications:
- Car Wash
- Farm
- Industrial
- Manufacturing
- Heavy-Duty Home Use
- Sprinklers
- Irrigation
UPC:
- 022315144279
