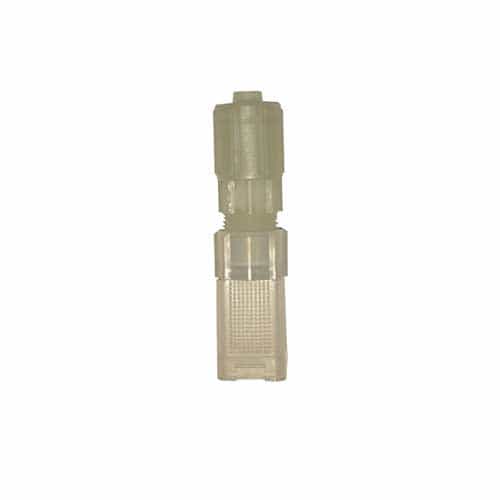

Pulsafeeder J40116 Foot Valve and Strainer Assembly for 3/8 in. Pulsatron and Chem-Tech Pumps - CSPE Seat
Brand:
Mfr. Model #:
J40116
KR Part #:
PFJ40116
Weight:
0.10 lbs
Availability:
2
Poly foot valve and strainer assembly with a CSPE seat and a ceramic check ball. Used with wet-end Pulsatron and Chem-Tech metering pumps. Includes a ceramic weight to keep suction tubing straight.
Technical Specifications
Inlet Port: 3/8 inch
Product Description
FPP Poly Strainer with CSPE Seat
This J40116 Strainer Assembly is used at the end of the suction tubing on a Pulsatron or Chem-Tech metering pumps with a wet end code. This foot valve/strainer assembly has a check ball inside that keeps the metering pump primed when it is turned off. A ceramic weight is included that keeps the hose straight and properly in place at the bottom of the tank. This version has a CSPE seat.
Specifications:
- Connections: 3/8" outer diameter tubing
- Body Material: FPP
- Seat Material: CSPE
- Ball Material: Ceramic
- Ceramic weight included
- Weight: .10 lbs.
Use With These Pumps:
- Pulsatron PHC1
- Pulsatron PHCD
- Chem-Tech DAAC
