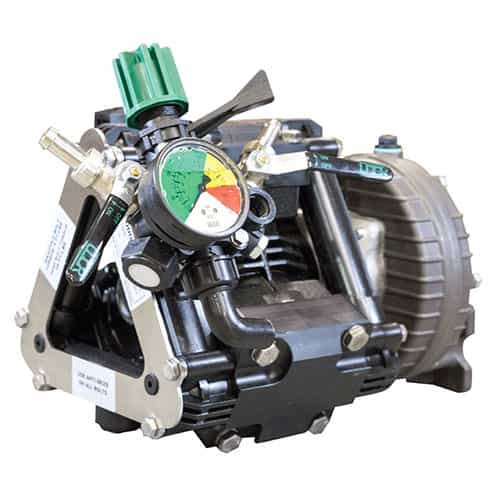

Udor Zeta 40P/GR Soft Wash Pump with Gear Box

The Udor Zeta 40P/GR pump is constructed with a polypropylene head, externally mounted manifolds, and stainless-steel liquid handling components that endure aggressive chemicals used in the soft wash industry. Udor Zeta series pumps generate a low pressure which soft wash professionals desire because it won’t damage delicate surfaces. These pumps are effective for horticultural, and agricultural applications too! Standard pulsation dampener and simplicity of design make it reliable and easy to maintain. Self-lubricating piston sleeves prevent excessive wear and facilitate smooth operation. Desmopan diaphragms handle high temperatures and aggressive chemicals. The GR designation indicates this Udor Zeta 40P pump comes with a gear reduction unit that is compatible with 4-6.5 HP gas engines that accept a 3/4" shaft.

Specifications:

• Max GPM: 10.5
• RPM: 540
• Max PSI: 300
• Max Temperature: 140 degrees F
• Inlet Port: 1-1/4" Hose Barb
• Outlet Ports: (2) 1/2" Hose Barb
• Bypass: 3/4" Hose Barb
• Piston Diameter: 55.0mm
• Crankshaft Stroke/Code: 11.0mm/J
• Dimensions: 16" L x 11" W x 12" H
• Weight: 75.00 lbs.

Recommended Oil:

• Requires 39 oz. of Udor Lube 40W Premium Pump Oil
• Alternate Oil:
  • 30W non-detergent
  • 15W-40 non-detergent oil

Features:

• Desmopan diaphragms
• Polypropylene head
• Externally mounted manifold
• Stainless-steel liquid handling parts and hardware components
• Control valve with a pressure gauge
• Great for soft wash chemicals and other aggressive fluids
