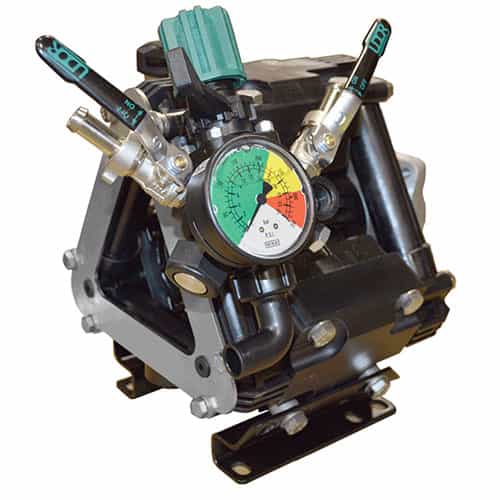

Udor Z40P Zeta-40P Triple Diaphragm Soft Wash Pump - 10.5 GPM

Mfr. Model #:
KR Part #:
36.00 lbs
Out of Stock - Pre-Order Now
Now Only!

Th Udor Zeta-40P is a low-pressure 3-cylinder diaphragm pump ideal for soft wash applications. Poly body, plasticized aluminum heads, glass-filled nylon manifolds and stainless steel liquid handling parts offer durability. The Udor Z40P pumps up to 10.5 gallons per minute.


Technical Specifications

Max GPM: 10.5
RPM: 540
Max GPM: 10.5
Max Temperature: 140 degrees F

Product Description

Udor Z40P Soft Wash Pump

A low-pressure, low-RPM 3-cylinder diaphragm pump, the Udor Z40P is the go-to choice for "soft wash" car wash needs, as well as a number of other chemical applications. Poly crankcase construction, heavy-duty connecting rods, and simplicity of design make it both durable and easy to maintain, while self-lubricating piston sleeves keep pumping effortlessly. Adapts easily to PTO, gas engine, hydraulic, and belt drive applications. DESMOPAN diaphragm.


  • Max RPM: 540
  • Inlet port: 1 1/4" hose barb
  • Outlet port: 1/2" hose barb
  • Weight: 36 lbs
