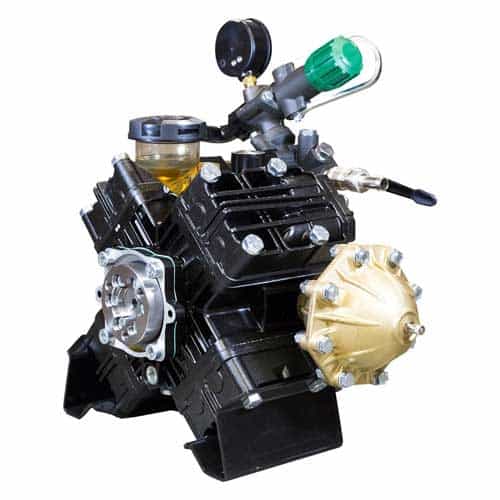

Udor 03-D100C Delta Medium-Pressure Four Diaphragm Pump - 560 PSI, 26 GPM

Brand:
Mfr. Model #:
D100C
KR Part #:
UDD100C
Weight:
52.00 lbs
Usually Ships in 2 Weeks
MSRP
$2,689.52
Now Only!
$1,310.33
Aluminum body diaphragm pump with stainless steel liquid handling parts. Hose barb ports include a 1 1/2" inlet, two 1/2" outlets, and a 3/4" bypass. Built-in pulsation dampener, control valve, and pressure gauge.



Technical Specifications

Inlet Port: 1 1/2 inch
Max GPM: 26
Max PSI: 560
Max Temperature: 140 degrees F
RPM: 540

Product Description

Aluminum Abrasive Material Pump

The Udor 03-D100C Quad Diaphragm Pump is an update to the KAPPA-100 pump. It has the same specifications and performance details, but with a new look and pump head design. This pump is made with anodized aluminum and has stainless steel wetted parts. It has a 1.5" hose barb inlet, two .5" hose barb outlets, and a .75" bypass. This model has a 1.375" six spline male PTO shaft. Add shaft kit as needed.

This lightweight Delta pump is equipped with a pulsation dampener, control unit, and universal drive face. It also has a pressure gauge, dula ball valve outlets, a manual dump lever, and an adjustable pressure regulator. Ideal for use with liquid fertilizers, herbicides, pesticides, suspension products, and other abrasive materials.

Dimensions: 15.5" Length x 16" Width x 12.5" Height

Specifications:

  • 26 GPM maximum flow rate
  • 560 PSI maximum pressure
  • 540 RPM
  • 140° Fahrenheit maximum liquid temperature
  • 1 3/8" six spline male PTO shaft
  • Inlet: 1 1/2" hose barb
  • Discharge: 1/2" hose barb (x2)
  • Bypass: 3/4" hose barb bypass
  • Clockwise and counter-clockwise pump shaft rotation
  • Four Desmopan diaphragms
  • Anodized aluminum housing
  • Weight: 52 lbs.

Possible Applications:

  • Farming
  • Horticulture
  • Fluid transfer
  • Weed and pest control
  • Fire fighting
  • Hydrostatic testing
  • Dust suppression

Features:

  • Desmopan diaphragms
  • Anodized aluminum construction
  • Built-in pulsation dampener, control valve, and pressure gauge
  • Can run dry
  • Visual sight oil gauges
  • Self-priming operation
  • Compatible with most liquid fertilizers, pesticides, deicers, and abrasive materials
  • Large capacity oil bath crank cases with drain plugs for easier maintenance
