Triplex Pump with Accessories

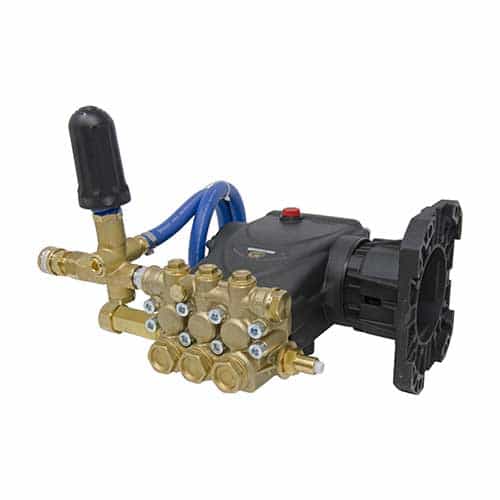

The General Pump PMREP1313G8 Pumps Made Ready Package includes a EP1313G8 Triplex Plunger Pump, a PULSAR4KHPEZ Unloader, and all of the parts and hardware necessary to use the pump right away. Holds a 4 GPM maximum flow rate, 4000 PSI maximum pressure, and 3400 RPM maximum pump speed. Includes a flange to mount a SAE J609A gas motor.

Dimensions: 9.5" x 9.5" x 6.45"

Details:

• 4 GPM

• 4000 PSI maximum discharge pressure

• 3400 RPM

• 125 PSI maximum inlet pressure

• 1/2-14 BSPP-F inlet port thread

• 3/8-19 BSPP-F outlet port thread

• 3' maximum inlet vacuum (water)

• .512" (13mm) plunger bore

• .512" (13mm) plunger stroke

• 15 oz. oil crankcase capacity

• 1" shaft diameter

• 165° Fahrenheit maximum liquid temperature

• Weight: 15.9 lbs.

Package Includes:

• (1) Triplex Plunger Pump; part #EP1313G8

• (1) Unloader; par #PULSAR4KHPEZ

• (1) Inlet Fitting Assembly; part #D10085

• (1) Filter Washer; part #700004

• (1) PTP Valve; part #2100612MB

• (1) Ring Seal; part #680110

• (3) 3/8" Hose; part #639387

• (2) Crimp Type Hose Clamp; part #639897

• (1) 3/8" x 1/4" Hose Barb; part #638147

• (1) 3/8" x 3/8" Hose Barb; part #638148

• (1) 3/8" Hex Adapter; part #639298

• (1) Face Seal Washer; part #680029

• (1) 3/8" Plug; part #D11009

• (1) 3/8" Coupler; part #D10004

• (1) Prop 65 Warning Label; part #400128
