MD Series Electric Metering Pump

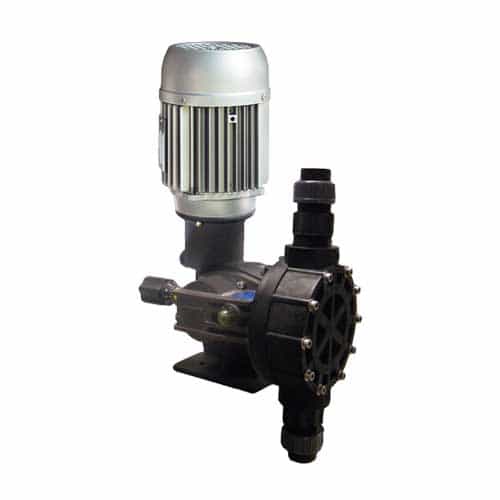

The Pulsafeeder MD1DKTPN1A-XXX Blackline Metering Pump is an electric 115/230VAC metering pump with a spring return mechanical diaphragm. Performance details include a 29 GPH flow rate and a 150 psi pressure rating. Connections include 1/2" female NPT inlet and outlet ports.

The Pulsafeeder MD1DKTPN1A-XXX Metering Pump is from the Blackline MD Series. This series includes metering pumps that deliver precise and accurate chemical dosage. Series MD pumps have oil lubricated ball bearings, a PTFE diaphragm, and a die-cast aluminum housing. These reliable metering pumps are designed to perform in the widest range of chemical dosing applications.

Specifications:

• Type: Metering Pump, Diaphragm, Mechanical
• Product Line: Blackline
• Maximum Flow: 29 GPH (696 GPD)
• Maximum Pressure: 150 PSI
• Maximum Viscosity: 500 cps
• Maximum Strokes per Minute: 116
• Flow Control: Manual stroke length adjustment (0 to 100%)
• Turn Down Ratio: 10:1
• Head Material: PVDF
• Fittings Material: PVDF
• Valve Balls: Pyrex
• Diaphragm: PTFE faced, long life
• Valve Material: PTFE
• Seat Material: PTFE
• O-ring: PTFE
• Connections: Pipe 1/2" FNPT
• Motor: TEFC - NEMA 56C, 1P, 1/2 Hp
• Power Supply: 115/230 VAC, 60 Hz, 1 Phase
• Temperatures to 104° Fahrenheit
• Includes: Installation, Operation, and Maintenance Instruction Manual

Features:

• Easy installation
• Rugged construction

• Manual stroke adjustment mechanism

• Cartridge check valves

• Rugged double-sided PTFE faced, long life diaphragm

• Oil lubricated ball bearings in die-cast aluminum housing

• Accuracy +/- 2% of maximum capacity

Possible Applications:

• Car washes

• Water conditioning

• Wastewater treatment

• Chlorination

• pH treatment
