Hot and Cold Water Supply Mixing Valve

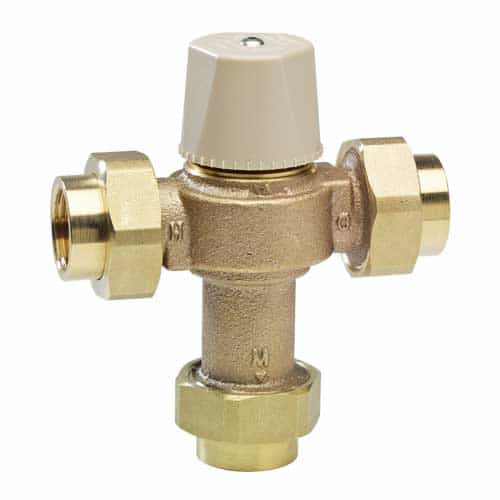

The Watts LFMMVM1-UT Thermostatic Mixing Valve supplies tempered water to baths and bathrooms in residential, commercial, and institutional environments. This lead-free brass blending valve has 3/4" connections, a 150 PSI maximum pressure rating, and an adjustable field range from 80 to 120 degrees Fahrenheit.

The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting.

Specifications:

• Cold Water Inlet Connection Size: 3/4" FNPT
• Cold Inlet Temperature Range: 39 to 85° Fahrenheit
• Cold Water Bypass: No
• Hot Water Inlet Connection Size: 3/4" FNPT
• Hot Water Temperature Range: 120 to 180° Fahrenheit
• Maximum Pressure Rating: 150 PSI
• Body Material: Lead-Free Brass
• Body Finish: Rough Bronze
• Capacity: 13 GPM at 45 PSI
• Maximum Working Pressure: 150 PSI
• Field Adjustable Range: 80 to 120° Fahrenheit
• Maximum Temperature: 200° Fahrenheit
• Maximum Flow Rate: 20 GPM at 125 PSI
• Minimum Flow Rate: .5 GPM
• Maximum Pressure Differential: 25%
• Minimum Differential Temperature: 5° Fahrenheit
• Outlet Temperature Accuracy: +/- 7° Fahrenheit
• Minimum Static Pressure: 30 PSI
• Series: LFMMV

Features:

• Locking mechanism secures temperature setting
• ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed
• Thermal actuation technology for precise temperature control
• Lead-free

UPC:

• 098268451825
