Nickel-Plated Brass Sensor

The Telemecanique XS218BLPAM12 Proximity Sensor comes from the OsiSense XS line of sensors. OsiSense proximity sensors are useful for a variety of applications including car washes, robotics, assembly equipment, machining devices, packaging machines, food/beverage, and more!

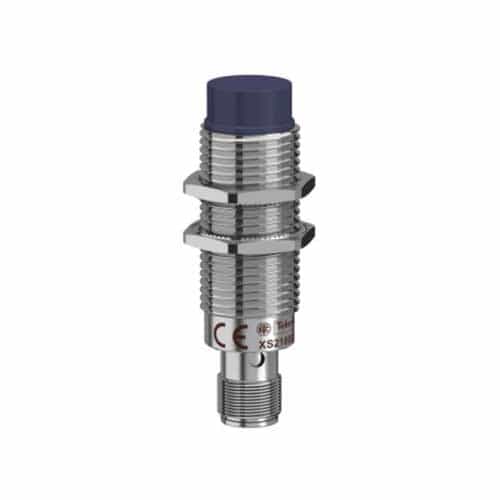

The XS218BLPAM12 model is a cylindrical design 64mm inductive sensor with a fixed body type. It is made of nickel-plated brass and has a 3-wire technique, an M12 male electrical connector with 4 pins, and a frontal detection face. It has a nominal sensing distance of 8mm and a 12 to 24 volt DC reverse polarity protection.

Specifications:

• Range of product: OsiSense XS

• Sensor type: Inductive proximity sensor

• Sensor name: XS2

• Sensor design: Cylindrical M18

• Size: 64 mm

• Body type: Fixed

• Enclosure material: Nickel plated brass

• Type of output signal: Discrete

• Wiring technique: 3-wire

• Nominal sensing distance: 8 mm

• Discrete output function: 1 NO

• Discrete output type: PNP

• Electrical connection: Male connector M12, 4 pins

• US rated supply voltage: 12-24 V DC with reverse polarity protection

• Switching capacity in mA: <= 200 mA with overload and short-circuit protection

• IP degree of protection: IP67 conforming to IEC 60529

Complementary Specifications:

• ISO thread: M18 x 1

• Detection face: Frontal

• Detector flush mounting acceptance: Non flush mountable

• Front material: PBT

• Operating zone: 0 to 6.4 mm

• Differential travel: 1-15% of Sr

• Output circuit type: DC

• Status LED Output state: 1 LED (yellow)

• Supply voltage limits: 1-36 V DC

• Switching frequency: <= 500 Hz

• Maximum voltage drop: <2 V (closed)

• Current consumption: <= 10 mA no-load

• Maximum delay first up: 15 ms

• Maximum delay response: 0.1 ms

• Maximum delay recovery: 1 ms

• Marking: CE

• Threaded length: 35 m

• Height: 18 mm

• Length: 64 mm

• Net weight: 0.035 kg
