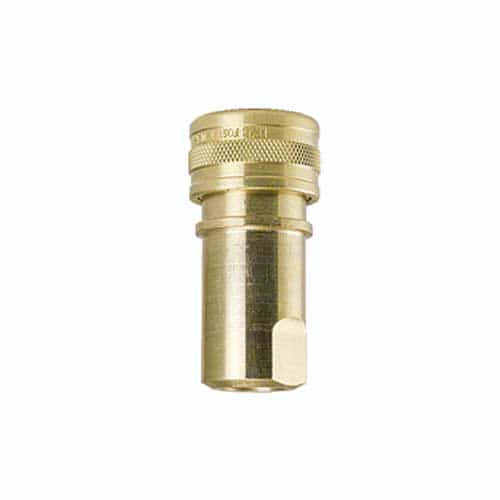

ZSi Foster H3B Brass Quick Disconnect FHK Series 3/8 in. Shut Off Socket

Brand:
Mfr. Model #:
H3B
KR Part #:
H3B
Weight:
0.40 lbs
In Stock
MSRP
$28.09
Now Only!
$18.43
Brass body shut off coupling for 3/8" pipe and tube connection in a high-pressure system.



Technical Specifications

Max PSI: 2200
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch

Product Description

Brass 2-Way Quick Disconnect Shut Off Coupling - 3/8"

The ZSi Foster H3B Brass Shut Off Valve is used to create leak-free connections between pipe and tube in hydraulic and other high-pressure systems. This brass socket coupling has 3/8" connections and a valve at each end to prevent fluid loss.

Details:

  • FHK Series
  • 2200 PSI
  • 3/8" QC x 3/8" FNPT connection
  • Two-way
  • Quick disconnect
  • Brass construction
  • Standard Buna-N seals - double o-ring seals
  • ROHS compliant




1. ISO B, Hardened plugs and sleeves constructed from solid bar stock ensures long service life and maximum resistance to damage from hydraulic and mechanical shock.
2. High flow capacity
3. Foster's conical valve with its 360 deg. metal to metal valve stop maintains valve alignment and ensures that poppets open fully every time.
4. Captive valve seal ensures "bubble tight" poppet sealing since seal is positively captured by the metal poppet to minimize seal washout or damage from high fluid velocity.
5. Ball locking mechanism ensures reliable connections every time. Many ball bearings distribute the load while providing alignment and excellent swiveling action to reduce hose torque and prolong hose life.
6. Broad range of metals and seal materials allow the use of most fluids.
