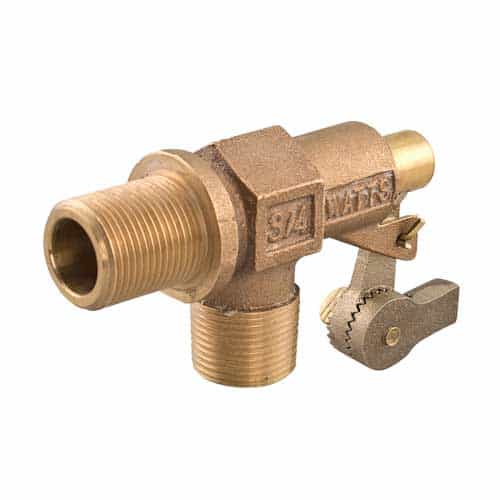

Watts 750TO Bronze Mechanical 3/4 in. Male Heavy Duty Float Valve
Brand:
Mfr. Model #:
750TO (0780009)
KR Part #:
FVW750TO
Weight:
0.90 lbs
GTIN:
098268090925
Availability:
1
Bronze body mechanical float valve with 3/4" M inlet and outlet connections. Maximum 165 PSI working pressure.
Technical Specifications
Inlet Port: 3/4 inch
Max GPM: 60
Max PSI: 165
Max Temperature: 180 degrees F
Product Description
750 Series Bronze Float Valve - 3/4 x 3/4 MNPT
The Watts 750TO Float Valve is used at car washes, industrial environments, and agricultural applications to control high-capacity water flow. This bronze body float valve has a 3/4" MNPT inlet with machine flange and a straight pipe 3/4" MNPT threaded outlet connection. Boasts serrated arms for easy water level adjustment, bronze short and long arms, replaceable seals, and a non-jamming single lever action.
Specifications:
- Body Material: Bronze
- Flow Rate: 40 GPM @ 50 PSI to 60 GPM @ 100 PSI
- Inlet Connection Size: 3/4" male NPT
- Inlet Pressure: 50 PSI
- Maximum Working Pressure: 165 PSI
- Maximum Temperature: 180° Fahrenheit
- Outlet Connection Size: 3/4" male NPT
- Stem Fitting: 1/4-20
- 750 Series
Features:
- Machined flange
- Serrated arms
- Replaceable seals
- Bronze body
UPC:
- 098268090925
