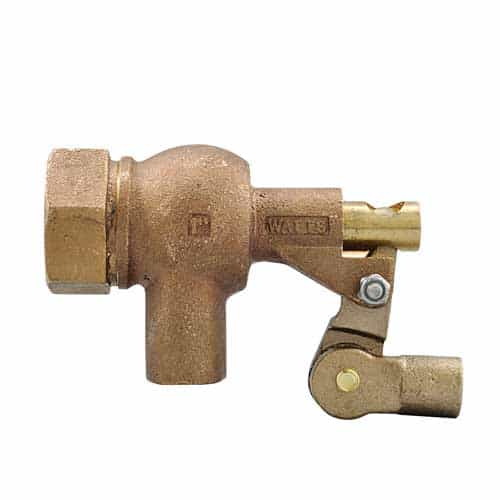

Watts 1000-01 Bronze 1 Inch Female Mechanical Heavy Duty Float Valve
Brand:
Mfr. Model #:
1000 1 (0780011)
KR Part #:
FVW10001
Weight:
1.85 lbs
GTIN:
098268090949
Bronze body mechanical float valve with 1" F inlet and outlet connections. Maximum 165 PSI working pressure. Maximum flow rate 100 GPM.
Technical Specifications
Inlet Port: 1 inch
Max GPM: 100
Max PSI: 165
Max Temperature: 180 degrees F
Product Description
1000 Series Bronze Float Valve
The Watts 1000-01 Float Valve is used at car washes, industrial environments, and agricultural applications to control high-capacity water flow. This bronze body float valve has a 1" FNPT inlet with machine flange and a straight pipe 1" FNPT threaded outlet connection. Boasts serrated arms for easy water level adjustment, bronze short and long arms, replaceable seals, and a non-jamming single lever action.
Specifications:
- Body Material: Bronze
- Flow Rate: 100 GPM
- Inlet Connection Size: 1" female NPT
- Inlet Pressure: 50 PSI
- Maximum Working Pressure: 165 PSI
- Maximum Temperature: 180° Fahrenheit
- Outlet Connection Size: 1" female NPT
- Stem Fitting: 3/8-16
- 1000 Series
Features:
- Machined flange
- Serrated arms
- Replaceable seals
- Bronze body
UPC:
- 098268090949
