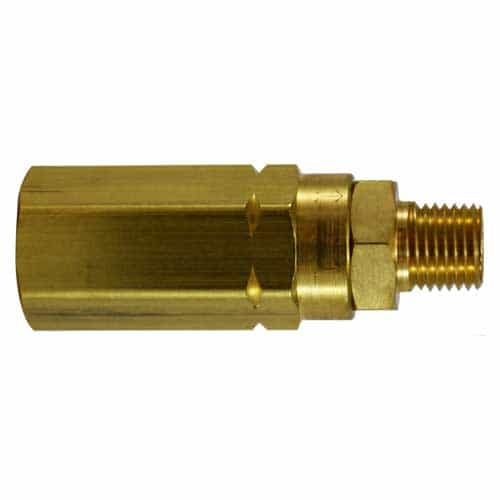

46-514 Check Valve 1/4 in. F x M 3000 PSI
Brand:
Mfr. Model #:
46-514
KR Part #:
CV6514
Weight:
0.25 lbs
Usually Ships in 2 Weeks
This brass check valve has a maximum pressure of 3000 PSI.
Prop 65
Technical Specifications
Max Temperature: 180 degrees F
Max PSI: 3000
Product Description
Female x Male High Pressure Check Valve
The 46-514 check valve has a standard cracking pressure of 1 psi with a maximum operating pressure of 3000 psi. This brass valve has a maximum operating temperature of 180 degrees F when using Buna-N seals.
- 1/4" FIP x MIP
- Maximum pressure: 3000 PSI
- Brass material
- Buna-N seals
- Guided 316 stainless steel ball and spring
- Fixed ringed seat prevents extrusion of seal
- Opening diameter: 0.28
- Approximate CV: 1.2
- 4.0 water GPM at 10 PSI
- Good for air applications
- Item #46-514
- Weight: 0.25 lbs.
Industry Crossover Numbers:
- 6961290
- 8549T12
