Wet Environment Chemical Metering Pump

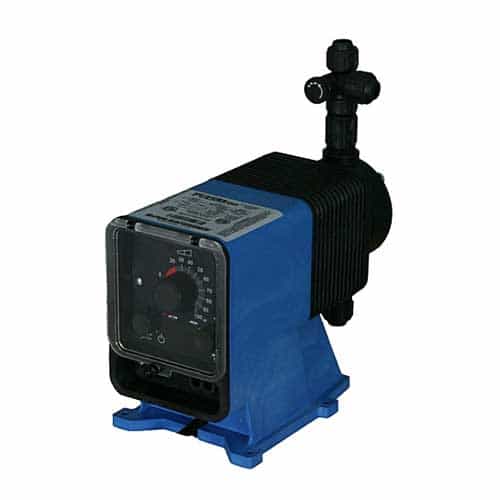

The Pulsafeeder LPK5SA-PTC3-XXX pump is from the PULSAtron Series E Plus line of pumps. These positive displacement, diaphragm-style pumps have an adjustable output volume from zero to maximum capacity.

PULSAtron Series E Plus pumps feature guided check valves with precise seating and excellent suction characteristics. These metering pumps have a reliable timing circuit that is almost totally unaffected by temperature, electromagnetic interference, and other electrical disruptions. PULSAtron Series E Plus models have a high-quality solenoid valve and PBT thermoplastic enclosure that help dissipate heat. That allows these pumps to consistently meet their pressure and capacity expectations, even through extended use. They're also water-resistant. All of these performance details mean that PULSAtron E Plus Series are ideal for demanding applications like car washes, outdoor use, and manufacturing environments.

Specifications:

• Maximum Flow: 60 GPD (2.5 GPH)
• Maximum Pressure: 150 PSI
• Power Supply: 115 VAC, 50/60 Hz
• Maximum Viscosity: 1000 cps
• Maximum Strokes/Minute: 125
• Flow Control: Dual Manual Control
• Turn Down Ratio: 100:1
• Head/Fittings: GFPPL
• Valve Balls: Ceramic
• Diaphragm: PTFE-faced CSPE
• Valve/Seat/O-ring: TFE
• Connections: 1/2" outer diameter tubing

Additional Components Included:

• Weighted foot valve/strainer assembly
• Bleed valve assembly
• 1/2" NPT male injection fitting/back pressure check valve assembly
• 4' suction tubing
• 4' bleed/return tubing
• 8' discharge tubing

PULSAtron Series E Plus Features:

• Manual Control by on-line adjustable stroke rate and stroke length
• Highly Reliable timing circuit
• Circuit Protection against voltage and current upsets
• Panel Mounted Fuse
• Solenoid Protection by thermal overload with auto-reset
• Water Resistant, for outdoor and indoor applications
• Indicator Lights, panel mounted
• Guided Ball Check Valve Systems, to reduce back flow and enhance outstanding priming characteristics
• Few Moving Parts and Wall Mountable
• Safe & Easy Priming with durable leak-free bleed valve assembly (standard)
• Reliable metering performance
• Rated "hot" for continuous duty
• Leak-free, seal-less, liquid end
