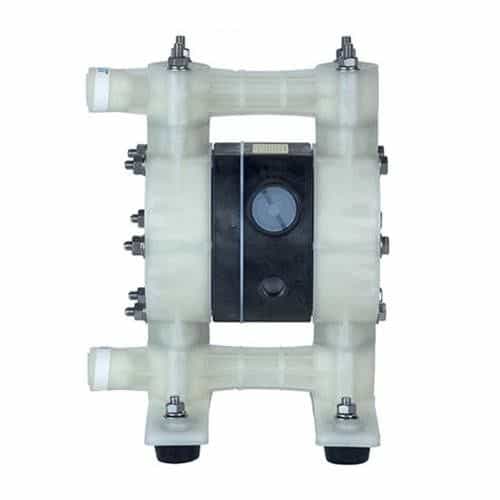

Yamada NDP-15FPV Polypropylene Body Air-Operated Diaphragm Pump - 13.5 GPM, 1/2 NPT, Viton

Mfr. Model #:
KR Part #:
9.00 lbs
Out of Stock - Pre-Order Now
Now Only!
Poly body air-operated pump with Ryton motor and two diaphragms. Has a maximum flow rate of 13.5 GPM. This model includes Viton elastomers, diaphragms, and ball valve.

Technical Specifications

Inlet Port: 1/2 inch
Max GPM: 13.5
Max PSI: 100
Outlet Port: 1/2 inch
Max Temperature: 180 degrees F
RPM: 400

Product Description

13.5 GPM Diaphragm Pump with Viton Elastomer

The Yamada NDP-15FPV Pump is a dual diaphragm pump powered by air pressure. This AODD pump has a max flow rate of 13.5 GPM and a maximum air pressure of 100 PSI. It has a polypropylene body and a Ryton air motor. The diaphragm, ball valve, and o-rings are made with Viton material.
Please see the Yamada Corrosion Guide under "Manuals" for chemical compatibility.


  • 13.5 GPM
  • Diaphragms: Viton
  • Ball Valve: Viton
  • O-Rings: Viton
  • Inlet and Outlet Ports: 1/2" Female NPT
  • Air Inlet: 1/4" Female NPT (includes ball valve)
  • Air Exhaust: 3/8" Female NPT (includes silencer)
  • Maximum Liquid Temperature: 180° Fahrenheit
  • Air Supply Pressure: 20 to 100 PSI (1.4 to 7 kgf/cm_)
  • Maximum Solid: 1/32"
  • Maximum Suction Life: 8 feet
  • RPM: 400 (cycle speed)
  • Weight: 9 lbs.


  • Car Wash
  • Washing/Cleaning Systems
  • Chemical Delivery/Transfer
  • Gas/Petroleum
  • Paints/Dyes
  • Mining
  • Printing/Ink
  • Stone/Clay/Glass
  • Water Treatment
