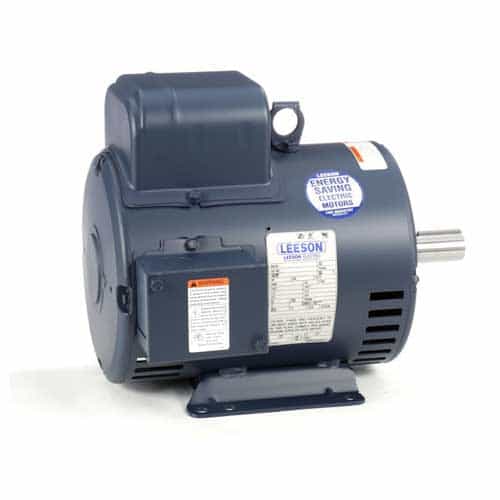

Leeson 131534.00 Single Phase Air Compressor Motor - 115/230V, 1740 RPM, 3 HP

Brand:
Mfr. Model #:
131534.00
KR Part #:
LM131534
Weight:
78.00 lbs
GTIN:
691720017777
Usually Ships in 2 Weeks
MSRP
$1,134.80
Now Only!
$756.59
Rolled steel motor with double-shielded ball bearings and dual rotation. Used for air compressors.
Freight Only

Freight Only




Technical Specifications

Amps: 33.8/16.9
Horsepower: 3
RPM: 1740
Voltage AC: 115/230
Phase: Single

Product Description

General Purpose One Phase Motor

The Leeson 131534.00 Motor is a single phase motor designed for belted loads. Generating three horsepower and reaching speeds of 1740 RPM, this low voltage motor meets NEMA standards and has UL certification.

Nameplate Specifications:

  • Output Horsepower: 3 HP
  • Frequency: 60 Hz
  • Current: 33.8/16.9 A
  • Service Factor: 1.15
  • Efficiency: 75.5%
  • Insulation Class: F
  • KVA Code: J
  • Enclosure: Drip Proof
  • Maximum Ambient Temperature: 104° Fahrenheit
  • Drive End Bearing Size: 6206
  • Opp Drive End Bearing Size: 6205
  • CSA: Y
  • IP Code: 22
  • Output kW: 2.2 kW
  • Voltage: 115/230V
  • Speed: 1740 RPM
  • Phase: 1
  • Duty: Continuous
  • Design Code: L
  • Frame: 184T
  • Standard: UL Listed
  • CE: N
  • IP Code: 22

Technical Specifications:

  • Electrical Type: Capacitor Start Induction Run
  • Poles: 4
  • Mounting: Rigid base
  • Drive End Bearing: Ball
  • Frame Material: Rolled Steel
  • Overall Length: 14.19"
  • Shaft Diameter: 1.125"
  • Assembly/Box Mounting: F1 only
  • Starting Method: Across the line
  • Rotation: Selective counterclockwise
  • Motor Orientation: Horizontal
  • Opp Drive End Bearing: Ball
  • Shaft Type: T
  • Frame Length: 10"
  • Shaft Extension: 2.75"

Features:

  • Double shielded ball bearings
  • Designed for belted loads
  • High starting and breakdown torque
  • Dual rotation

UPC:

  • 691720017777
