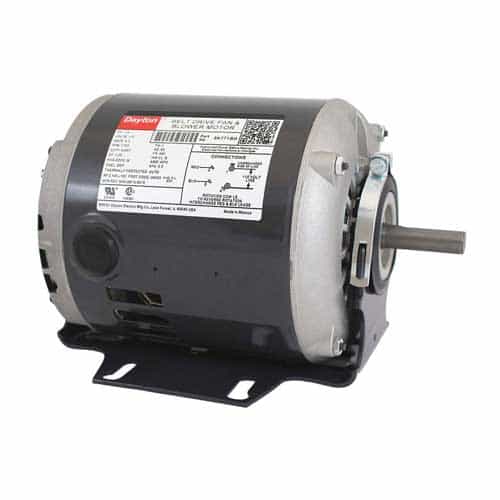

Dayton 3K771 Split-Phase Belt Drive Motor - 1/4 HP, 1725 RPM, 115V
Brand:
Mfr. Model #:
3K771
KR Part #:
3K771
Weight:
12.30 lbs
This Dayton 1/4 hp electric motor is equipped with a durable rolled steel frame and ball bearings. 1/4 HP, 1725 RPM, 115V.
Technical Specifications
Amps: 5.3
Horsepower: 1/4
Max Temperature: 104 degrees F
Phase: Split
Voltage AC: 115
RPM: 1725
Product Description
Dayton 3k771 Motor
The Dayton 3K771 Motor is a split-phase belt drive motor is best for use with air circulation equipment that require quiet operation. This motor is installed in fan, blower, whole-house fans, and cooler applications.
Details:
- Motor Application: HVAC/R
- Motor Sub Application: Belt Drive Fan/Blower
- Motor Design: Split-Phase
- Horsepower: 1/4 HP
- Number of Speeds: 1
- Nameplate RPM: 1725 RPM
- Voltage: 115V
- Frame: 48
- Motor Enclosure Design: Open Dripproof
- Motor Mounting Type: Cradle Base
- Motor Mounting Position: All Angle
- Hertz: 60Hz
- Full Load Amps: 5.3A
- Motor Thermal Protection: Auto
- Insurance Class: B
- Motor Service Factor: 1.35
- Motor Bearings: Ball
- Motor Frame Material: Rolled Steel
- Maximum Ambient Temperature: 104° Fahrenheit
- Motor Shaft Rotation: CW/CCW
- Motor Shaft Design: Flat
- Shaft Diameter: 1/2"
- Shaft Length: 1 1/2"
- Length Less Shaft: 7 7/16"
- Overall Length: 8 15/16"
- Body Diameter: 5 5/8"
- Resilient Ring Diameter: 2 1/2"
- Ring to Ring Center: 6 9/16"
- Duty: Continuous
- Phase: 1
- Standards: UL Recognized (E37403) and CSA Certified (258501)
