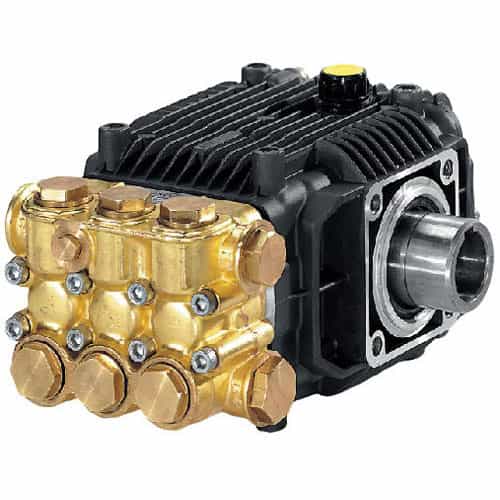

AR North America XMA35G25E-F17 Triplex Pump - 3.5 GPM, 2500 PSI, 1750 RPM
Brand:
Mfr. Model #:
XMA35G25E-F17
KR Part #:
ARXMA35G25EF17
Weight:
15.00 lbs
Usually Ships in 2 Weeks
Technical Specifications
RPM: 1750
Max GPM: 3.5
Max PSI: 2500
Max Temperature: 140 degrees F
Bore: 15 millimeter
Stroke: 15.4 millimeter
Shaft Diameter: 1 1/8 inch
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Crankcase Capacity: 14.5 ounce
Product Description
Gas Powered 2500 PSI Pump
In need of a reliable pump to power your car washing or pressure washing operation? Turn to a trusted name like AR North America! The XMA35G25E-F17 triplex plunger pump is a horizontal model for use with gas engines. It has a triplex plunger design and can be used at up to 3.5 GPM. A 1" gas engine flange is included.
Please consult the pump manual to ensure compatibility with your system.
- Maximum flow: 3.5 GPM
- Maximum pressure: 2500 PSI
- Maximum speed: 1750 RPM
- Maximum temperature: 140° F
- Maximum oil capacity: 14.5 oz.
- Bore diameter: 15 mm
- Stroke: 15.4 mm
- Hollow 1.125" crankshaft, version E, ID stamp 1
- Inlet: 1/2" F
- Outlet: 3/8" F
- AR North America item #XMA35G25E-F17
- Also known as #XMA3.5G25E-F17
- Weight: 15 lbs.
