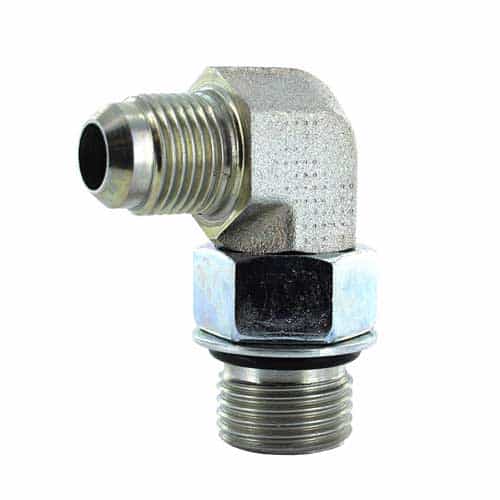

Parker 4C5OX-S Steel Triple-Lok Elbow Adapter - 1/4 JIC x SAE Number 4

Mfr. Model #:
KR Part #:
0.15 lbs
Usually Ships in 2 Weeks
Now Only!
Steel body Triple-Lok adapter fitting with #4 SAE and JIC 37° connections.
Prep 65

Prop 65


Product Description

Triple-Lok Connector Fitting

Parker's Triple-Lok fittings include three parts: the body, nut, and sleeve. Connections on this 90° elbow adapter include a size 4 SAE end and a JIC end with a flared 37° mating angle. This high-pressure fitting is designed to connect hoses, tubing, and equipment in hydraulic and other fluid systems.

Specifications and Features:

  • Metal to metal seating
  • Blowout proof design
  • Vibration resistance
  • Port Connections: 1/4" SAE Size 4 (7/16-20) x 1/4" male JIC 37° flare
  • Type: Triple-Lok
  • Material: Steel
  • Maximum Pressure: 6000 PSI
  • Parker part #4C5OX-S
