24 Volt High-Efficiency Diaphragm Pump

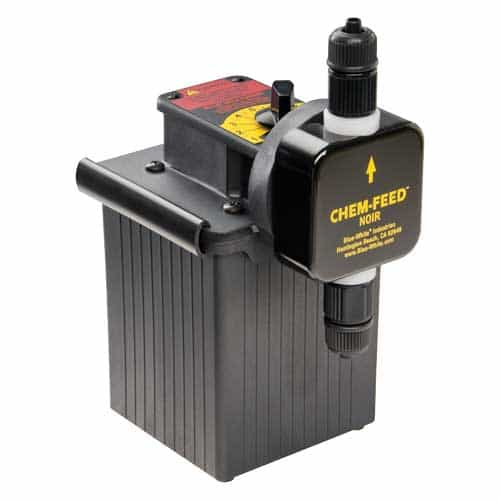

The Blue-White C15N332X066V70 is an economical and versatile CHEM-FEED  diaphragm pump. This high-efficiency pump has a permanently lubricated gear motor that provides smooth, quiet, powerful operation. It's excellent for low-pressure car wash services like foam, presoaks, and protectants. It boasts a quick adjusting mechanical stroke length -5 to 100%- that offers accurate, small injections at a high rate per minute.

Specifications:

• Maximum Working Pressure: 125 PSIG
• Flow Rate: 16.3 GPD, 1.4 oz/min
• Maximum Fluid Temperature: 130° Fahrenheit
• Ambient Temperature Range: 14 to 110° Fahrenheit
• Maximum Viscosity: 1000 Centipoise
• Maximum Suction Lift: 10 ft. water
• Duty Cycle: Continuous
• Enclosure: NEMA type 3R
• Operating Voltage: 24VAC/60Hz, 1ph (3.40 Amp Maximum)
• Output Adjustment Range: 5-100% stroke length
• Cam Stroke Length: 0.055"
• Maximum Motor RPM: 60 RPM

Material Construction:

Enclosure:

• Outdoor rated enclosure.
• Durable housing of chemical resistant Val ox (PBT) thermoplastic.

Wetted Parts:

• PTFE coated EP diaphragm

• Double-ball inlet and outlet cartridge type ceramic check valves. Chemical resistant PVDF valve body and fitting, ceramic balls, Viton static seals and TFE/P ball seat O-rings

• No metal springs are used

Motor:
All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.

Applications:

• Water treatment and conditioning

• Soap, wax and detergent injection

• Wastewater treatment

• Biocide feed

• Rural water systems

• Cooling tower & boiler treatment

• Fertilizer and nutrient injection

• Pool chlorination & PH control
