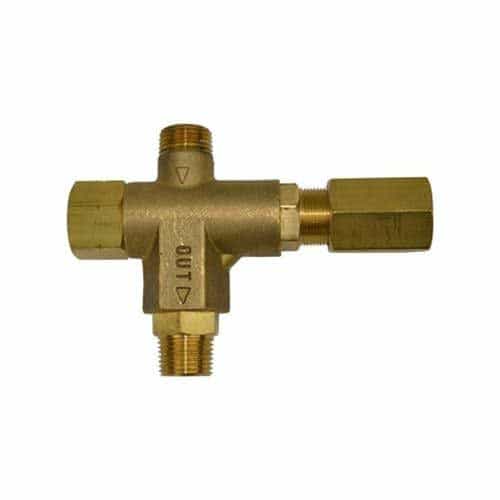

CAT Pumps 7500S.0110 Brass 2000 PSI Hi-Temp Pressure Unloader - 6 GPM, FPM, 3/8 NPT

Brand:
Mfr. Model #:
7500S.0110
KR Part #:
PU7500S.0110
Weight:
0.90 lbs

Usually Ships in 2 Weeks

MSRP
$334.96
Now Only!
$220.98
Brass construction unloader that regulates pressure in both single and multiple gun applications. 6 GPM, 2000 PSI, high-temperature FPM o-rings.



Technical Specifications

Max PSI: 2000
Max Temperature: 240 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max GPM: 6

Product Description

2000 PSI High-Temperature Unloader

The CAT Pumps 7500S.0110 unloader is made with brass and boasts FPM elastomer o-rings that allow it to be used in high-temperature, high-pressure fluid applications. This pressure regulating unloader maintains a set pressure and goe into bypass mode when the trigger is released or there is an obstruction downstream. This unloader has a max flow of 6 GPM and a maximum pressure rating of 2000 PSI.

Dimensions: 3.0" x 1.0" x 4.25"

Specifications:

  • Brass construction
  • Pressure Range: 100-2000 PSI
  • Maximum Temperature: 240 Fahrenheit
  • Flow Rate Range: .5 to 6 GPM
  • Inlet Port: 3/8" MNPT
  • By-pass Port: 3/8" FNPT
  • Outlet Port: 3/8" MNPT
  • Weight: 14.4 oz.

Features:

  • Maintains full system pressure while running in by-pass without full load on pump.
  • Offers pump protection against pressure fluctuations and system changes.
  • Minimum pressure fluctuations with alternating use of multiple guns.
  • Adjusting cap permits easy adjustments of pressure.
