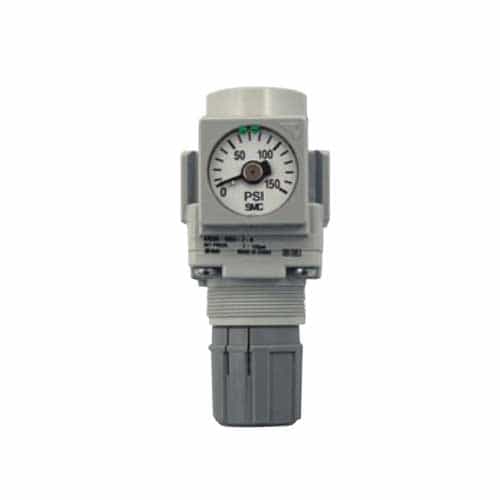

SMC Pneumatics AR20K-N02E-Z-B Modulator Air Regulator with Backflow Function - 1/4 NPT, 145 PSI
Brand:
Mfr. Model #:
AR20K-N02E-Z-B
KR Part #:
SMC102
Weight:
0.40 lbs
In Stock
Air regulation device with a backflow mechanism that releases pressure on the outlet side of the regulator. 145 PSI, 1/4" NPT ports, size 20 body. Note: Actual item may differ from photo.
Technical Specifications
Max PSI: 145
Max Temperature: 140 degrees F
Inlet Port: 1/4 inch
Product Description
AR Series Regulator with Square Gauge
The SMC Pneuamtics AR20K-N02E-Z-B is a regulator for pressured air lines. Features a built-in mechanism that quickly releases air pressure on the outlet side of the regulator. The modular design of the AR series connects with other SMC air preparation equipment of similar size.
- Specifications:
- Body Size: 20
- Inlet and Outlet Port Size: 1/4" NPT
- Pressure Gauge Port Size: 1/8" NPT
- Maximum Pressure: 145 PSI
- Set Pressure Range: 7.25 to 123.28 PSI
- Temperature Range: 23 to 140° Fahrenheit
- Backflow function
- Square embedded type pressure gauge with limit indicator
- Locking adjustment knob prevents accidental setting changes
