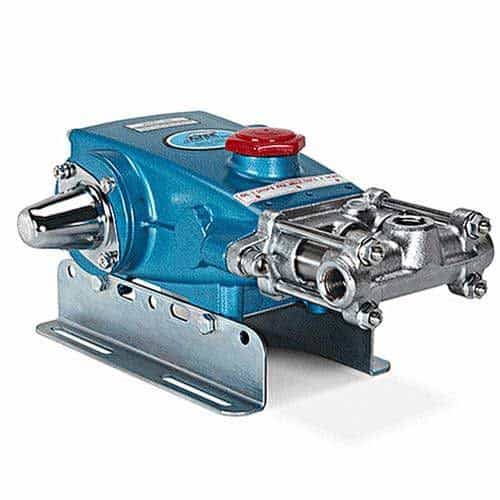

CAT Pumps 1010.3000 Brass Manifold Piston Pump with Hi Temp Seals - 13 GPM, 700 PSI

Mfr. Model #:
KR Part #:
31.00 lbs
Usually Ships in 2 Weeks
Now Only!
Chrome plated brass manifold triplex piston pump with stainless steel valve assemblies, cylinders, and sleeves. 700 PSI, 13 GPM.

Technical Specifications

Bore: 28.5 millimeter
Inlet Port: 1 inch
Max GPM: 13
Max PSI: 700
Max Temperature: 190 degrees F
Shaft Diameter: 25 millimeter
Stroke: 28 millimeter
RPM: 900
Outlet Port: 3/4 inch

Product Description

Ten Frame Piston Pump with High Temp Seals

The CAT Pumps 1010.3000 model is a three piston rod positive displacement, reciprocating piston pump. It has a chrome-plated brass manifold with stainless steel valve assemblies, cylinders, and sleeves. Its low RPM is designed for belt drive. The Uniflow design features a mechanically actuated inlet valve providing a continuous forward fluid flow and strong suction.

This version of the 101 model pump has high-temperature seals that tolerate up to 190° Fahrenheit fluids.

Dimensions: 17.28 x 11.42   x 6.30"


  • Max Flow: 13 GPM
  • Minimum Pressure: 100 PSI
  • Maximum Pressure: 700 PSI
  • Maximum Temperature: 190° Fahrenheit
  • Inlet Port Size (1): 1" NPT
  • Discharge Port Size (3): 3/4" NPT
  • RPM: 900 RPM
  • Drive Type: Belt
  • Manifold Material: Brass
  • Shaft Diameter: .984"
  • Bore: 1.122"
  • Stroke: 1.102
  • Inlet Pressure Range: -8.5 to 40 PSI
  • Weight: 34.6 lbs.


  • Triplex Uniflow design provides continuous forward liquid flow for smooth operation.
  • Wetted cups and floating pistons are lubricated and cooled by pumped liquid for long cup life.
  • Mechanically actuated inlet valves give strong lift and easy prime.
  • Oil bath crankcase assures optimum lubrication.
  • 100% wetted seal design allows pumped liquid to cool and lubricate for longer life.
