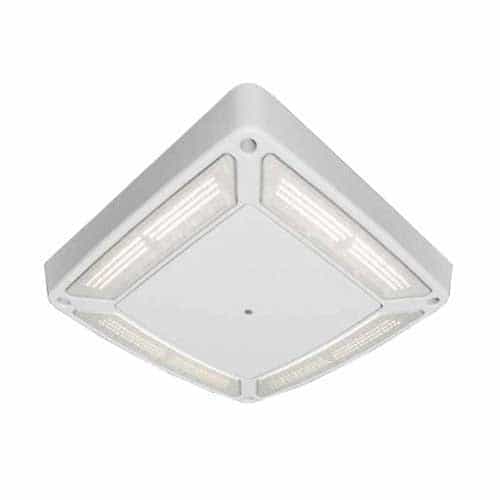

Commercial White Finish Recessed Lighting - 130 Watt

LSI Industries 674579 Scottsdale Vertex (SCV) light fixtures are the perfect canopy light solution for car washes, convenience stores, gas stations, and more! This subtle but sophisticated fixture has a white finish and a low profile that elegantly fits into any environment. It is designed in a way that allows air to pass through the fixture, helping it perform better and regulate temperature. That means components aren't constantly contracting and expanding, which helps avoid cracks and wearing.

This SCV recessed light fixture is capable of being retrofitted to a variety of older arrangements, and is also built to accommodate future additions of wireless controls, sensors, and other hardware. Possibly the best feature of the Scottsdale Vertex fixture is the Symmetric Combination Forward Throw optics that produce light over a larger area and eliminates or reduces the need for flood lights!

FIXTURE ONLY; NO HOUSING.


Features:

• Best-in-class energy efficiency
• Many output levels
• Wireless controls
• Virtually maintenance free
• Innovative retrofit options to replace out-dated fixtures
• Comfortable, safe lighting
• Hybrid distributions offer safer extended light path
• Smart styling complements facility
• Made in the U.S.A.
• Manufacturer long part #: SCV LED 20L SC UNV DIM 50 WHT

Construction Details:

• Rugged low-profile die-cast aluminum housing, optical unit, and driver cover
• Ultra-slim 2" luminaire height and lightweight design effectively target a broad range of applications and allow for easy installations
• Below canopy access to optical chamber and driver housing for serviceability
• IP65 rated optical unit protects integral components from low pressure water jets from any direction
• Luminaire is proudly manufactured in the U.S. of U.S. and imported parts
• Fixtures are finished with LSI's DuraGrip¨ polyester powder coat finishing process
• The DuraGrip finish withstands extreme weather changes without cracking or peeling

Optical Details:

• Proprietary silicone refractor optics provide exceptional coverage and uniformity
• Standard symmetric distribution
• Minimum 70 CRI
• 5000K color temperature
• State-of-the-art silicone optics deliver industry leading optical control with an integrated gasket
• Silicone optical material does not yellow or crack with age and provides a minimum light transmittance of 93%

Electrical Details:

• 130 Watts
• 20000 Lumens
• High-performance driver features over-voltage, under-voltage, short-circuit and over temperature protection
• Standard Universal Voltage - 120-277VAC
• L80 Calculated Life: over 100k hours
• Driver dims to 10%
• Total Harmonic Distortion: under 20%
• Operating Temperature: -40° Fahrenheit to 122°Fahrenheit
• Power Factor: >0.90
• Input power stays constant over lifespan
• High-efficacy LEDs are mounted to 4 circuit boards to maximize heat dissipation
• Components are fully encased in potting material for moisture resistance
• Driver complies with FCC standards

Certifications and Listings:

• UL Listed to UL 1598 and UL 8750
• RoHS Compliant
• State of California Title 24 Compliant with IMS or ALSC/ALSCS option
• American Recovery and Reinvestment Act Funding Compliant
• Lighting Facts Approved
• IP65 Rated Optical Unit

Applications:

• Car Washes
• Gas Stations
• Convenience Stores
• Parking Lot Canopies
• Bus Stops
