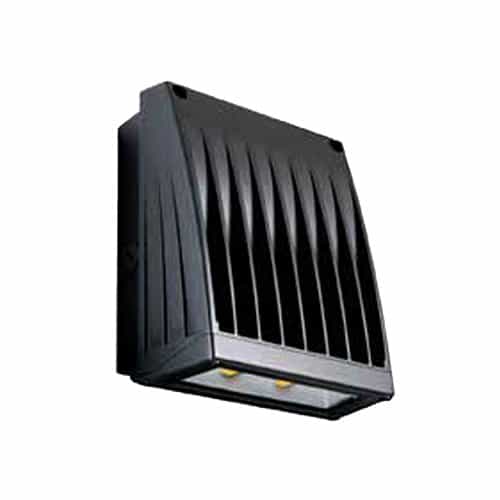

120 Volt Slim LED Wall Light - 20 Watts

The Slim Wall Light Series products have a slim, low profile design with attractive architectural styling. A quick and easy mounting system is bottom hinged to prevent leakage. The LED placement and mounting position results in a glare free design.

Both attractive and functional, the WPSLS Series slim LED wall fixtures are the perfect way to light up the parking lot at businesses like car washes, convenience stores, gas stations, and more! LED lighting is energy efficient and operates at a lower, safer temperature versus more traditional incandescent lamps.

Electrical Specifications:

• 20 Watts

• 120 Volts

• High-performance driver features over-voltage, under voltage, short-circuit and over temperature protection.

• 0-10 volt dimming (10% - 100%) standard.

• L70 Calculated Life: >100k Hours

• Total harmonic distortion: <20%

• Power factor: >.85

• Input power stays constant over life.

• Driver Off-State Power is 0 watts.

• Chip On Board (COB) LEDs with integrated circuit board mounted directly to the housing to maximizheat dissipation and promote long life.

• Components are fully encased in potting material for moisture resistance. Driver complies with FCC standards. Driver and key electronic components can easily be accessed.
• Minimum 2.5kV surge rating
• Manufacturer long part #: WPSLS LED 2L 50 PC120 BZA


Controls:

• Optional 120V electronic button Photocontrol.
• Apertures for field or factory installed photocontrol.

Optical System:

• High-performance Chip On Board (COB) LEDs behind clear tempered glass for maximum light output.

• 5000K color temperature.

• 2000 Lumen package

• 2418 delivered Lumens

• Minimum CRI of 71.

• Zero uplight.

Construction:

• Rigid Precision Die cast-aluminum housing for durability and consistency.

• Vertical fins serve as a heat sink and resist accumulation of dust and debris.

• The Patent Pending thermal stacking heat removal technology extracts heat from within the housing moving it away from LEDs and integral components.

• Luminaire hinges open from the bottom to prevent leakage.

• Luminaire is proudly manufactured and tested in the U.S.

• Fixtures are finished with LSI's DuraGrip¨ polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling.

Installation:

• Surface mounts direct to J-box or wall.

• Features a bubble level and removable hinged face frame for ease of installation.

Listings

• Listed to UL 1598 and UL 8750.

• CSA Listed

• RoHS Compliant.

• DesignLights Consortium¨ (DLC) qualified product. Not all versions of this product may be DLC qualified.
• Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.

• American Recovery and Reinvestment Act Funding Compliant.

• Suitable For Wet Locations.

Applications:

• Car Washes

• Gas Stations

• Convenience Stores

• Parking Lot Canopies

• Bus Stops

• Many other businesses
