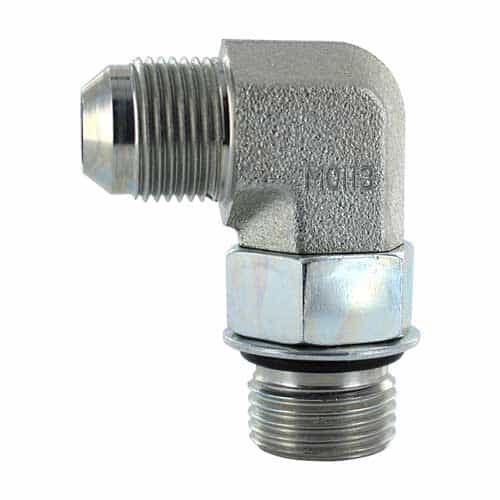

Parker 8-10 C5OX-S Steel Triple Lok 90 Degree Elbow Connector - 1/2 Male 37 Degree Flare x 7/8-14 SAE

Brand:
Mfr. Model #:
8-10 C5OX-S
KR Part #:
PLF585S
Weight:
0.38 lbs
Usually Ships in 2 Weeks
MSRP
$30.36
Now Only!
$14.57
Steel body fitting with a 1/2" 37° JIC connection on one end and a 7/8-14 SAE on the other end. This 90° elbow connector is usable in applications up to 5000 PSI. Compact design, low torque, and resistant to high temperatures.



Technical Specifications

Max PSI: 5000

Product Description

5000 PSI 37° JIC Elbow Fitting

This Parker 8-10 C5OX-S Triple Lok Connector is made with steel and has a nitrile o-ring. This fitting has a right angle elbow shape and 1/2" 37° JIC Flare x 7/8-14 SAE connection points. This high-quality fitting provides a leak-free seal for tubes, pipe, and hose in industrial settings.

Parker's Triple Lok 37° Flare JIC tube fittings and adapters meet the requirements of both SAE J514 and ISO 8434-2 standards. They offer the industry's broadest offering of port ends. These Triple Lok fittings boast a design with a small metal to metal seal area which results in a compact design, low assembly torque, high temperature resistance, and high pressure capability.

Details:

  • 90° Elbow design
  • 1/2" 37° JIC Flare x 7/8-14 SAE
  • Steel construction - Chromium-6 free
  • 90 durometer Nitrile o-ring

Possible Applications:

  • Car wash
  • Construction
  • Military ground systems
  • Aerial lift
  • Agriculture
  • Material handling
  • Military marine
  • Engine transmission
