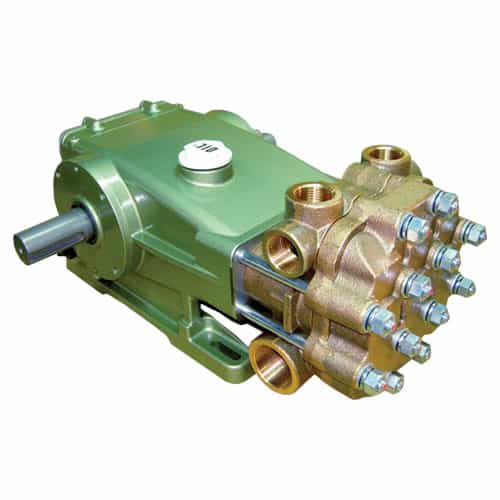

Arimitsu TR-1110KV Dual Shaft Triplex Plunger Pump - 23 GPM, 1000 PSI

Mfr. Model #:
TR-1110KV / A3189
KR Part #:
0.04 lbs
Usually Ships in 4 Weeks
Now Only!

This Arimitsu pump offers quiet operation with smooth liquid flow with easily serviceable parts that require no special tools!  Please note that this item must ship via freight.


Technical Specifications

Max PSI: 1000
Max GPM: 23
Inlet Port: 1 1/4 inch
Max Temperature: 175 degrees F
Shaft Diameter: 38.1 millimeter
Shaft Diameter: 1 1/2 inch
Crankcase Capacity: 60 ounce

Product Description

Quiet Operation Pump

The Arimitsu TR-1110KV triplex plunger pump is part of Arimitsu's 11 Series and features shafts on both the left and right hand sides.  It is constructed of stainless steel, brass, and ceramic for maximum performance and corrosion resistance. Able to achieve up to 23 GPM and 1000 PSI, it's the perfect choice for your busy car wash or other business requiring reliable pumping power.

Please note that this item is only available to ship via freight.

Dimensions: 20" x 15.7" x 8.6"

  • Maximum flow: 23 GPM
  • Maximum pressure: 1000 PSI
  • Maximum speed: 950 RPM
  • Maximum liquid temperature: 175° Fahrenheit
  • Inlet: 1.25" MNPT
  • Outlets: 1" and 0.78"
  • Shaft diameter 1.5"
  • Shaft on both sides of pump
  • Liquid cooled, low drag seals with slide-in seal cases for easy replacement
  • Balanced flow, lightweight crankcase design protected by zero-clearance exclusionary seals
  • Superior fluid flow manifolds made of forged brass
  • Stainless steel valve assemblies
  • Thermal shock resistant ceramic plungers
  • Oversized crankshaft bearings for long life
  • High polish stainless steel plunger rods
  • High strength connecting rods
  • Extended run-dry capability
  • Requires 60 ounces of oil
  • Arimitsu item #TR-1110KV
  • Weight: 86
