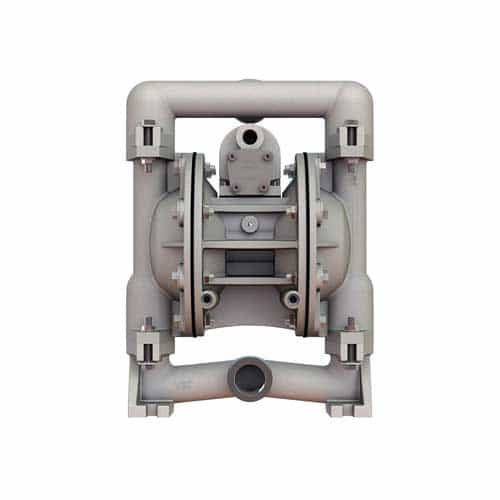

Versa-Matic E5AA6X669C Aluminum E-Series Bolted Air Diaphragm Pump with Santoprene - 1/2 in. Ports, 12 GPM

Brand:
Mfr. Model #:
E5AA6X669C
KR Part #:
VME5AS
Weight:
11.00 lbs
GTIN:
814338026263
Call For Availability
MSRP
$1,349.00
Now Only!
$944.30
Aluminum-body double diaphragm pump operated by air power.



Technical Specifications

Max GPM: 12
Max PSI: 125
Max Temperature: 300 degrees F
Inlet Port: 1/2 inch

Product Description

Aluminum Body Santoprene Diaphragm Pump - 1/2" Suction/Discharge

The Versa-Matic E5AA6X669C pump is an air-powered double diaphragm pump made with aluminum and XL Santoprene inner components. It has a 1/2" NPT suction inlet, a 1/2" NPT discharge outlet, and a max flow rate of 12 GPM. Reliably and safely transfer fluids and chemicals with this corrosion-resistant pump with bolted leak-free construction.

Specifications:

  • Maximum Flow Rate: 12 GPM
  • Suction Port: 1/2" NPT
  • Discharge Port: 1/2" NPT
  • Aluminum construction body
  • Maximum Discharge Pressure: 125 PSI
  • Maximum Temperature: 300° Fahrenheit
  • Air Inlet: 3/8" NPT
  • Air Exhaust: 3/8" NPT
  • Dry Suction Lift: 13'
  • Wet Suction Lift: 22'
  • Diaphragm: XL Santoprene
  • Check Type: XL Santoprene ball valve
  • Seat: XL Santoprene O-ring
  • Dimensions: 10.05" H x 8.39" W x 6.25" D
