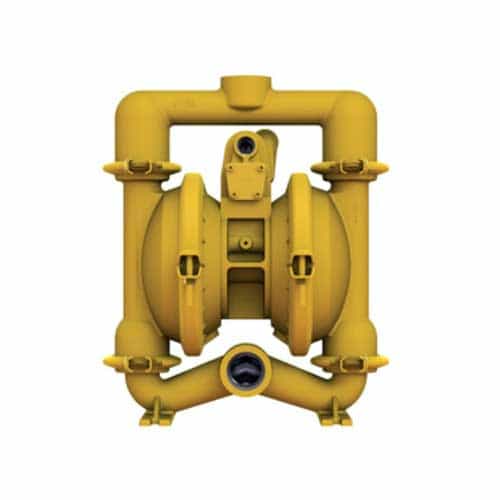

Versa-Matic E4AA2R220 Aluminum E-Series Air Diaphragm Pump with Buna-N - 1 1/2 x 1 1/4 in. Ports, 70 GPM

Brand:
Mfr. Model #:
E4AA2R220
KR Part #:
VME4AB
Weight:
41.00 lbs
GTIN:
814338026317
Usually Ships in 2 Weeks
MSRP
$1,888.00
Now Only!
$1,321.60
Aluminum-body double diaphragm pump operated by air power. Clamp-on construction.



Technical Specifications

Inlet Port: 1 1/2 inch
Max GPM: 70
Max Temperature: 180 degrees F
Max PSI: 125

Product Description

Clamp Version Aluminum Body Buna-N Diaphragm Pump

The Versa-Matic E4AA2R220 pump is an air-powered double diaphragm pump made with aluminum and Buna-Nitrile inner components. It has a 1.5" NPT suction inlet, a 1.25" NPT discharge outlet, and a max flow rate of 70 GPM. Reliably and safely transfer chemicals and liquids with this bolted, corrosion-resistant, leak-free pump.

  • Maximum Flow Rate: 70 GPM
  • Suction Port: 1 1/2" NPT
  • Discharge Port: 1 1/4" NPT
  • Aluminum construction body
  • Maximum Discharge Pressure: 125 PSI
  • Maximum Temperature: 180° Fahrenheit
  • Air Inlet: 1/2" NPT
  • Air Exhaust: 3/4" NPT
  • Dry Suction Lift: 19'
  • Wet Suction Lift: 31'
  • Diaphragm: Nitrile (Buna-N)
  • Check Type: Nitrile (Buna-N) ball valve
  • Seat: Aluminum/Nitrile (Buna-N) O-ring
  • Dimensions: 18" H x 11.5" W x 14.25" D
  • Maximum Noise Level: 101 dB
