Hypro 3390-0081 8 GPM Pressure-Activiated 5 Port Unloader - 3600 PSI
Brand:
Mfr. Model #:
3390-0081
KR Part #:
HYP33900081
Weight:
1.60 lbs

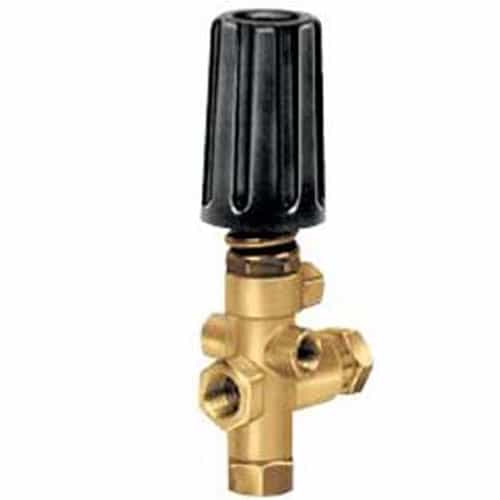

Adjustable brass body pressure-activated unloader with five ports.
Technical Specifications
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 200 degrees F
Max PSI: 3600
Max GPM: 8
Product Description
Adjustable Unloader and Bypass
The Hypro 3390-0081 unloader helps maintain consistent pressure in your car wash system, which results in consistent washing and safe levels for your equipment. This five port unloader has two 3/8" FNPT inlets, a 3/8" FNPT outlet, and two 1/4" FNPT bypass ports. This Hypro unloader is rated for 3600 PSI and 8 GPM.
- Maximum Pressure: 3600 PSI
- Maximum Flow: 8 GPM
- Maximum Temperature: 200° Fahrenheit
- (2) 3/8" female NPT inlet
- 3/8" female NPT outlet
- (2) 1/4" female NPT bypass
- Adjustment knob
- Brass body
- Buna-N seals
