X-Jet M5-13K Twist-Adjust Nozzle - 4 to 4.5 GPM

Make pressure washing easy with the X-Jet M5! The M5 is an improvement on the innovative design of the original X-Jet, which features an integrated adjustable nozzle that allows you to switch spray patterns with ease. Choose from spray angles ranging from 5° to 60° and quickly adapt to any cleaning task with ease. Just like the original X-Jet, the M5 mixes chemicals downstream as they are drawn up from a container as the stream of water moves through the lance to the nozzle, keeping harsh solutions out of your pump. This protects the pump from chemical damage, extending its longevity. Spray cleaning solutions up to 40 feet and clean taller structures, all while staying safely on the ground. With one nozzle, you can apply soap to the surface you are cleaning and rinse it off once it has accomplished its job. Disconnect the chemical hose to interrupt the chemical feed, allowing only water to flow through the nozzle so you can rinse the surface. Included with your X-Jet M5-13K is a 15-piece color-coded proportioner tip set enabling you to easily change the dilution ratio as you switch between chemicals on the job. Since you don't need to premix cleaning solutions, they are at their most effective strength because they are mixed just before they are sprayed on a surface.

The Difference of the X-Jet M5-13K Explained

The 13K designation at the end of the product number indicates this version handles operating pressures ranging from 2500 to 4000 PSI, and flow rates ranging from 4 to 4.5 GPM. The flow rate and pressure specifications are the only differences between models.

Features and Benefits:

• Protects Your Pressure Washer: Since cleaning solutions are mixed downstream and never pass through your pressure washer's pump, there is no risk of chemical damage to the internal components.
• Adjustable Spray Pattern: Quickly adapt to the spray pattern to match the job with just a twist of the nozzle. Spray pattern settings range from a 5° stream to a wide 60° fan.
• Impressive Reach: Spray cleaning solution up to 40 feet, allowing you to clean taller structures much more effectively while you keep your feet safely on the ground.
• One Nozzle Does It All: You can apply soap or rinse all with the same nozzle. All you need to do is remove the chemical suction hose to rinse.
• Customizable Dilution Ratio: Easily change the dilution ratio when switching between chemicals with the included 15-piece color-coded proportioner tip set.
• Fresh Chemical Solutions: Since the cleaning solutions are mixed as you go, they are fresh and at their most effective strength.
• Flexible Cleaning Options: Great for many professional pressure washing tasks, including cleaning residential and commercial buildings.

Maintenance Tip:

X-Jet recommends rinsing the parts in fresh water after each use.

Featured Review:

This item has worked flawlessly when it has been needed. Able to easily change out the size of the orifice so you can change the amount of liquid drawn. When searching for this item on multiple sites, Kleen Rite was the cheapest, and delivery was very fast.

Jamie M.
Jan 17, 2022

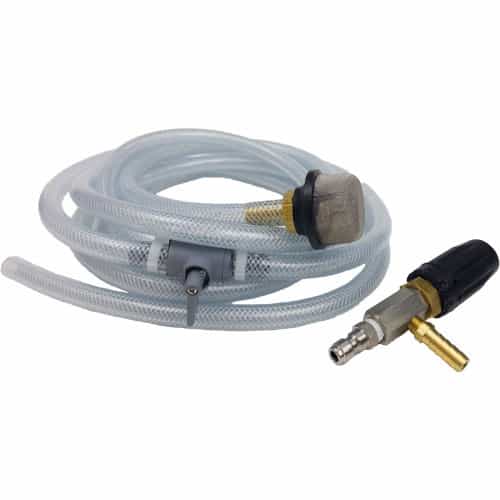

Items Included:

• Twist-adjust X-Jet M5-13K nozzle for spray patterns between 5° and 60°
• X-Jet suction hose with hose barb - 15 feet long
  Quick connect plug
• 15-piece color-coded proportioner tip set
• Shut-off valve
• Mushroom strainer

Specifications:

• X-Jet Product Number: XJETM5-13K
• KR Product Number: XJETM5-13K
• GTIN: 742832077835
• Maximum Pressure: 4000 PSI
• Optimal Pressure Range: 2500-4000 PSI
• Maximum Flow: 4.5 GPM
• Optimal Flow Rate: 4 - 4.5 GPM
• Dimensions: 5.38" x 1.25" x 2.38"
• Maximum Fluid Temperature: 190°F
• Inlet: 1/4" Quick Connect Plug
• Chemical Port: 1/8" MPT x 3/8" Hose Barb
• Weight: 4 lbs.
• Replacement Nozzle Available: Part #XJETM5-07K-N

Note: Selecting the X-Jet M5 model with the correct flow rate and pressure rating for your pressure washer will ensure the best performance. SEE ALL X-JETS BY CLICKING HERE.
